SELECT A DIAGRAM

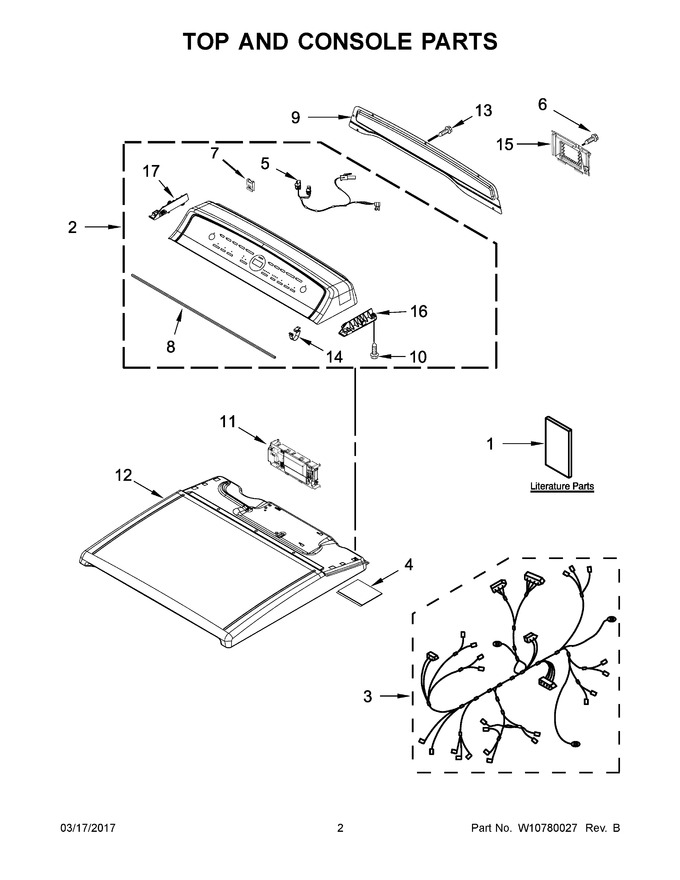

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - W10608838 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W10573719		Console Assembly (complete) (red)		Appelez-nous	-
3	W10706041		Wiring Harness				$ 303.85
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10593673		Harness, User Interface				$ 38.57
6	W10728156		Screw		Appelez-nous	-
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	W10448068		Control, Electronic		Appelez-nous	-
12	W10573725		Top (red)		Appelez-nous	-
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
1A	W10680139		Guide, Use And Care		Appelez-nous	-
1B	W10680150		Tech Sheet		Appelez-nous	-
1C	W10720369		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
