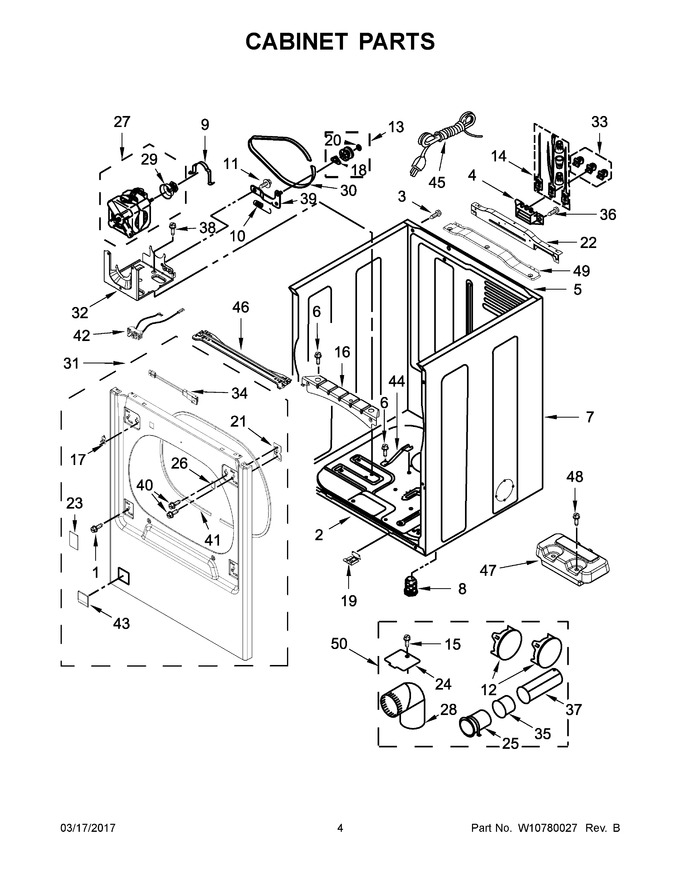

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw   (Replaces: 8533974)				$ 8.20
2	W10613683		Base, Cabinet				$ 201.57
3	W10636208		Screw		Appelez-nous	-
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10824896		Panel, Rear   (Replaces: W10622361)				$ 311.31
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
7	W10573724		Panel, Side (right) (red)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	WPW10139210		Screw   (Replaces: 3390646)				$ 8.03
16	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
17	W10725916		Strike And Plate Assembly				$ 31.58
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
19	W10632347		Spacer Bracket, Lower		Appelez-nous	-
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	W10596959		Bracket, Hinge				$ 20.00
22	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
23	W10596965		Plug, Hinge (chrome Shadow)		Appelez-nous	-
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
25	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
26	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
27	W11105178		Assembly, Motor   (Replaces: W10669443)			Immediately	$ 335.25
28	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
29	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 86.58
30	W10849499		Belt, Drive   (Replaces: W10610882)			Immediately	$ 57.86
31	W10573721		Panel, Front (cherry Metallic)		Appelez-nous	-
32	W10578053		Bracket, Motor Mounting				$ 92.22
33	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
34	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 74.25
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 82.90
36	W11661566		Screw   (Replaces: W10288126)				$ 14.73
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	W10847984		Switch, Broken Belt   (Replaces: W10724631)			Immediately	$ 26.90
43	W10337788		Plug, Front Panel (cherry Metallic)		Appelez-nous	-
44	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
45	W11628810		Cord, Power   (Replaces: 3401401)				$ 101.90
46	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
47	W10622383		Ballast		Appelez-nous	-
48	W11568617		Screw   (Replaces: W10567155)				$ 14.72
49	W10573722		Bulkhead Bracket, Rear Panel (red)		Appelez-nous	-
50	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent			Immediately	$ 89.96
7A	W10573723		Panel, Side (left) (red (without Cutout))		Appelez-nous	-
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
