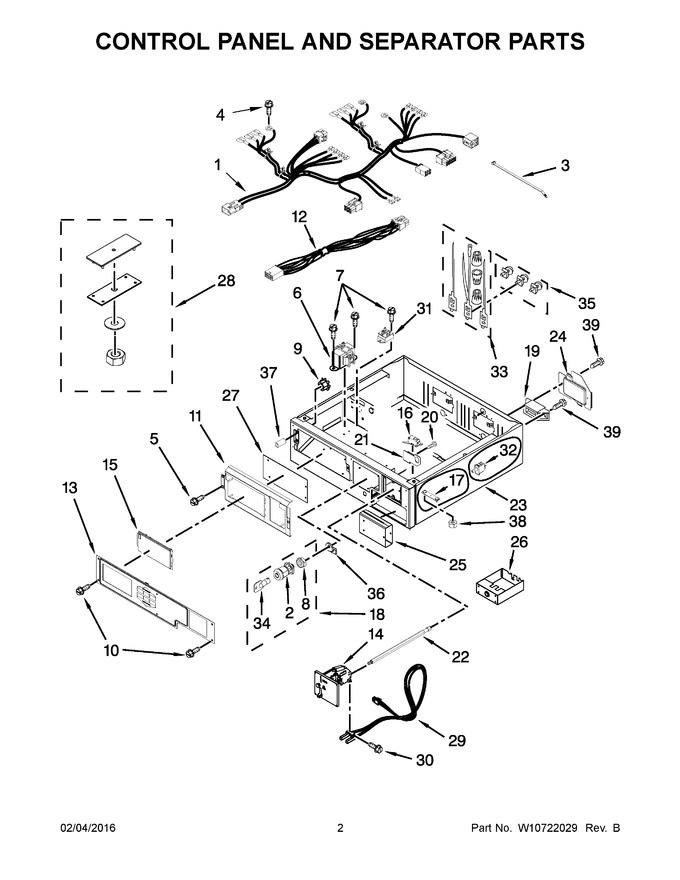

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10702048 | Harness, Collar |
|
- | |||||
| 2 | W11395752 | Nut, Hex (Replaces: W10139762) |
|
$ 13.69 | |||||
| 3 | WPW10155270 | Cable Tie (Replaces: W10155270) |
|
$ 7.02 | |||||
| 4 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 5 | W10756178 | Screw (Replaces: W10140652) |
|
$ 6.29 | |||||
| 6 | WPW10133285 | Transformer 120vac To 22.5vac (Replaces: W10133285) |
|
$ 214.70 | |||||
| 7 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 8 | WPW10133264 | Nut, Hex (Replaces: W10177242) |
|
$ 145.97 | |||||
| 9 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 10 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 11 | W10657185 | Plate, Control Mounting |
|
- | |||||
| 12 | W10111027 | Jumper, Transformer |
|
$ 48.10 | |||||
| 13 | W11678123 | Facia Console (Replaces: W10684165) |
|
- | |||||
| 14 | WPW10133242 | Assembly, Single Coin Drop (Replaces: W10133242) |
|
$ 126.51 | |||||
| 15 | WPW10133268 | Cover, Display (Replaces: W10133268) |
|
$ 73.93 | |||||
| 16 | WPW10447152 | Switch, Service Access (Replaces: W10447152) |
|
$ 43.26 | |||||
| 17 | W10159907 | Assembly, Mounting Strap Weld |
|
- | |||||
| 18 | WPW10133264 | Assembly, Lock Access Door (Replaces: W10133264) |
|
$ 145.97 | |||||
| 19 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 20 | 3400408 | Screw |
|
- | |||||
| 21 | W10160652 | Bracket-switch |
|
- | |||||
| 22 | WPW10137319 | Bolt, Hex Bar (Replaces: W10137319) |
|
$ 85.37 | |||||
| 23 | WPW10159849 | Collar (Replaces: W10159849) |
|
$ 543.31 | |||||
| 24 | W10684155 | Cover, Terminal Block (Replaces: W10196677) |
|
- | |||||
| 25 | W11204020 | Assembly, Vault Body (Replaces: W10133258) |
|
$ 421.72 | |||||
| 26 | W11204019 | Box, Coin (Replaces: W10133248) |
|
$ 163.85 | |||||
| 27 | W11398779 | Control Board (Replaces: W10678217) |
|
$ 606.41 | |||||
| 28 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 29 | WPW10247389 | Coin Optic Sensor Assembly (white) (Replaces: W10247389) |
|
Immediately | $ 121.70 | ||||
| 30 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 8.57 | |||||
| 31 | W10827406 | Relay, Motor |
|
- | |||||
| 32 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 33 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 34 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 35 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 36 | W11165684 | Cam, Locking (Replaces: W10133266) |
|
$ 9.57 | |||||
| 37 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 38 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 39 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 |
