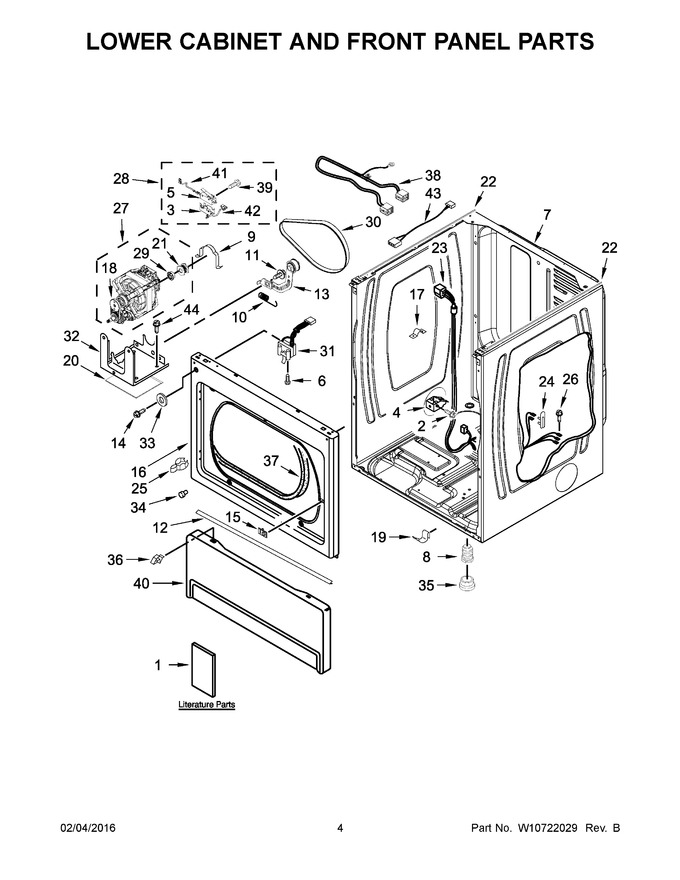

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10761035 | Installation Instructions |
|
- | |||||
| 2 | 681615 | Screw (Replaces: 3391915) |
|
$ 13.88 | |||||
| 3 | 8564011 | Bracket, Switch |
|
$ 18.17 | |||||
| 4 | 3391846 | Clip, Front Panel |
|
$ 21.15 | |||||
| 5 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 99.15 | |||||
| 6 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.70 | |||||
| 7 | W11417441 | Cabinet (white) (Replaces: W10547697) |
|
$ 419.21 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.83 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 12 | W10576519 | Seal, Deflector |
|
- | |||||
| 13 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 90.07 | ||||
| 14 | WP3400077 | Screw (Replaces: 3400077) |
|
$ 6.94 | |||||
| 15 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 16 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 272.53 | |||||
| 17 | WP98997 | Clip (Replaces: 98997) |
|
$ 11.09 | |||||
| 18 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 35.23 | ||||
| 19 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.75 | |||||
| 20 | W11113654 | Motor, Sound Pad (Replaces: W10212660) |
|
$ 22.18 | |||||
| 21 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 22 | WP8318396A | Seal, Foam (Replaces: 8318396) |
|
$ 37.82 | |||||
| 23 | W10702049 | Harness |
|
- | |||||
| 24 | WP3392519 | Fuse, Thermal (91c) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 25 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 26 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 27 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 413.21 | ||||
| 28 | W11247665 | Switch, Assembly (Replaces: W10155571) |
|
$ 26.40 | |||||
| 29 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 132.46 | ||||
| 30 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 44.00 | ||||
| 31 | WPW10237959 | Switch, Door (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 32 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 125.84 | |||||
| 33 | W11089212 | Washer (Replaces: 3392186) |
|
$ 9.67 | |||||
| 34 | 693152 | Bumper |
|
$ 10.96 | |||||
| 35 | WP3391943 | Boot, Foot (Replaces: 3391943) |
|
$ 7.82 | |||||
| 36 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 8.45 | ||||
| 37 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 38 | W10702055 | Jumper, Lower To Collar |
|
- | |||||
| 39 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.56 | |||||
| 40 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 238.33 | |||||
| 41 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 42 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 43 | 8283298 | Jumper, Door Switch |
|
$ 83.73 | |||||
| 44 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 7.85 | ||||
| 1A | W10135168 | Tech Sheet |
|
- | |||||
| NI | W10470674 | Kit, 4-way Venting |
|
Immediately | $ 76.65 |
