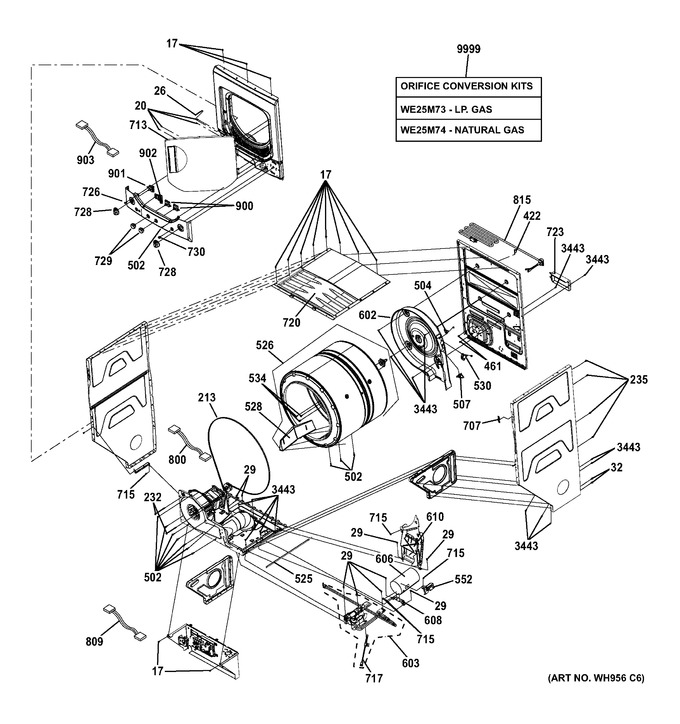

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | WW01A00097 | Screw (Replaces: WH2X1217) |
|
$ 3.97 | |||||
| 20 | WE2M302 | Screw |
|
- | |||||
| 26 | WE2M304 | Scr 8-18 Ab Ovq1 2 S Zn |
|
- | |||||
| 29 | WB01K10042 | Scr 8-18 Ab Ihw 3/8 Sn |
|
- | |||||
| 32 | WH01X20231 | Screw |
|
- | |||||
| 213 | WE12M51 | Belt Drive |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.97 | |||||
| 235 | WE2X263 | Scr |
|
- | |||||
| 422 | WE1M155 | Clip Cordset |
|
- | |||||
| 461 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.97 | ||||
| 504 | WG04F02270 | Thermostat Hi-limit (Replaces: WE4M137) |
|
Immediately | $ 19.04 | ||||
| 507 | WG04F03775 | Thermostat Bias Ctr Inlt (Replaces: WE4M181) |
|
Immediately | $ 26.23 | ||||
| 525 | WE1M999 | Gasket Exhaust |
|
- | |||||
| 526 | WE21M40 | Drum Asm 24" |
|
- | |||||
| 528 | WE21M39 | Baffle |
|
- | |||||
| 530 | LS2-290 | Thermostat (Replaces: WE4M80) |
|
Immediately | $ 27.90 | ||||
| 534 | WW01A00456 | Screw #10 (Replaces: WE2M163) |
|
Immediately | $ 3.97 | ||||
| 552 | WE4X448 | Detector |
|
- | |||||
| 602 | WE14M193 | Diffuser Gas Asm |
|
- | |||||
| 603 | WE25M80 | Valve And Burner Asm 24" |
|
- | |||||
| 606 | WE14M184 | Chamber Combustion |
|
- | |||||
| 608 | WE14M194 | Bracket Combustion Chamb |
|
- | |||||
| 610 | WE14M195 | Duct Transition |
|
- | |||||
| 707 | WE2M301 | Clip Front Panel |
|
- | |||||
| 713 | WE10M150 | Door Asm |
|
- | |||||
| 715 | WD2M101 | Scr |
|
- | |||||
| 717 | WW02F00740 | Igniter Asm. (Replaces: WE4X739) |
|
Immediately | $ 92.28 | ||||
| 720 | WE20X20680 | Top Panel |
|
- | |||||
| 723 | WE1M1008 | Cover Fuse Terminal |
|
- | |||||
| 726 | WE19X22736 | Panel Ctrl & Heat Tr Asm |
|
- | |||||
| 728 | WE04X23115 | Knob Control Asm |
|
- | |||||
| 729 | WE04X23116 | Knob Rotatory Asm |
|
- | |||||
| 730 | WE04X23114 | Button Start Asm |
|
- | |||||
| 800 | WE26X20715 | Harness Main Asm |
|
- | |||||
| 809 | WE26M363 | Harness Ui Asm |
|
- | |||||
| 815 | WE26M366 | Power Cord And Label Asm |
|
- | |||||
| 900 | WW01F00338 | Switch Selector (Replaces: WH12X10509) |
|
$ 10.22 | |||||
| 901 | WW03F00047 | Switch Selector (Replaces: WH12X10510) |
|
Immediately | $ 12.60 | ||||
| 902 | WE01X23117 | Button Selector |
|
- | |||||
| 903 | WH19X10081 | Harness Selector |
|
- | |||||
| 3443 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.97 | |||||
| 9999 | WW01A00230 | Kit Gas Conversion 27" (Replaces: WE25M74) |
|
Immediately | $ 104.73 | ||||
| 9999 | WE17X22741 | Motor Pulley |
|
- |
