SELECT A DIAGRAM

10 - Cabinet (3)


11 - Cabinet (4)


12 - Cabinet (5)


1 - Controls


2 - Cabinet (6)


3 - Tub, Basket & Agitator


4 - Motor & Drive Assembly


5 - Front Panel


6 - Blower & Motor


7 - Door


8 - Cabinet (1)


9 - Cabinet (2)

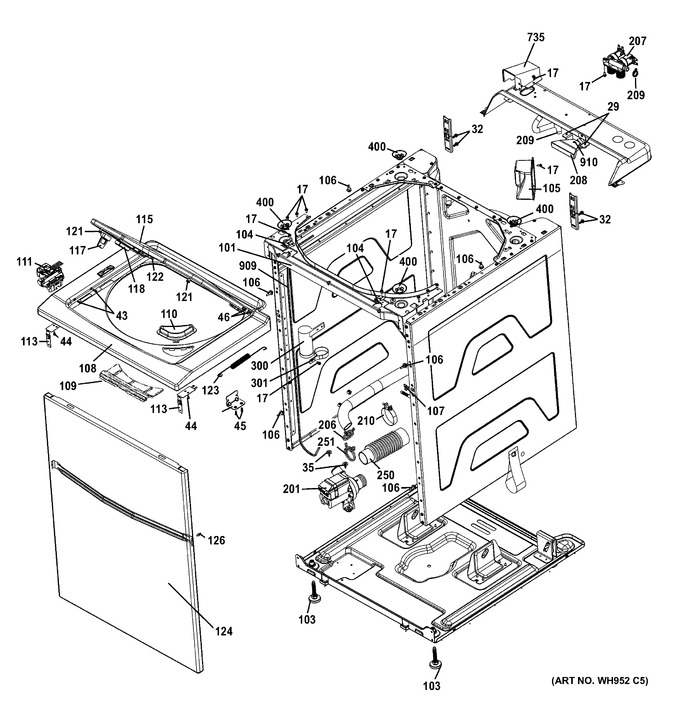

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	WW01A00097		Screw   (Replaces: WH2X1217)				$ 3.97
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
32	WH01X20231		Screw		Appelez-nous	-
35	WH01X10600		Scr 8-18 B Hxw 3/8 S Zn		Appelez-nous	-
43	WW01A00449		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10631)			Immediately	$ 4.52
44	WH01X10624		Scr 6-20 B Trt 3/8 S		Appelez-nous	-
45	WW01A00048		Scr 8-16 B Flp .525 S Zn   (Replaces: WH01X10622)			Immediately	$ 11.01
46	WH2X1211		Screw		Appelez-nous	-
101	WH16X10144		Brace Front Upper		Appelez-nous	-
103	WW03L00038		Leg Leveling   (Replaces: WH01X10594)			Immediately	$ 11.65
104	WW03A00013		Clip Locking   (Replaces: WH01X10595)			Immediately	$ 4.52
105	WH44X10280		Cover Hose		Appelez-nous	-
106	WW03A00028		Pin Alignment   (Replaces: WH01X10596)				$ 3.97
107	WH01X10597		Clip Ground		Appelez-nous	-
108	WH44X10283		Cover Top		Appelez-nous	-
109	WH16X10172		Bracket Cover		Appelez-nous	-
110	WH01X10621		Funnel Bleach		Appelez-nous	-
111	WW03F00016		Lock Lid   (Replaces: WH44X10288)			Immediately	$ 76.12
113	WH01X10623		Clip Cover		Appelez-nous	-
115	WH44X10285		Lid Washer		Appelez-nous	-
117	WW03F00001		Actuator Lid   (Replaces: WH43X10057)			Immediately	$ 5.36
118	WW03F00604		Magnet   (Replaces: WH01X10626)			Immediately	$ 11.71
121	WH01X10627		Bumper Lid		Appelez-nous	-
122	WW03L00007		Hinge Washer Cover Lh   (Replaces: WH44X10290)				$ 7.94
123	WW03A00033		Spring Cover   (Replaces: WH01X10628)				$ 10.12
124	WH42X10885		Panel Front Asm		Appelez-nous	-
126	WH02X10347		Stud Grounding		Appelez-nous	-
201	WE16X20393		Blower Wheel		Appelez-nous	-
206	WH01X10599		Clamp		Appelez-nous	-
207	WW01F01881		Valve Cw47c   (Replaces: WH13X10064)			Immediately	$ 76.09
208	WH13X10065		Water Inlet Asm		Appelez-nous	-
209	WH01X10649		Clamp		Appelez-nous	-
210	WH01X10603		Clamp Tub Outlet		Appelez-nous	-
250	WW03F00053		Hose Drain Inlet   (Replaces: WH41X10280)			Immediately	$ 20.24
251	WH01X10598		Clamp		Appelez-nous	-
300	WW01F00342		Run Capacitor   (Replaces: WH12X10513)				$ 29.08
301	WH01X10601		Clip Capacitor		Appelez-nous	-
400	WH01X10602		Seat Ball Joint		Appelez-nous	-
735	WE1M1000		Cover Harness Main		Appelez-nous	-
909	WH49X10101		Harness Principal Asm		Appelez-nous	-
910	WH12X10512		Thermistor Asm		Appelez-nous	-
	WW02L00339		Porte				$ 106.09
	WW03F00016		Lid Lock			Immediately	$ 76.12
	WW01F01881		Valve 2-1   (Replaces: WW03F00100)			Immediately	$ 76.09
	WW03F00499		Board Control Asm				$ 1,085.07
	WW02A00147		Kit Gas Conversion			Immediately	$ 92.83
	WW01F01166		Suspension Strap			Immediately	$ 42.19
	WW01F01159		Harness Principal Asm				$ 236.95
	WW02F00740		Igniter   (Replaces: WG04F01591)			Immediately	$ 92.28
	WW01F01510		Valve And Burner Asm 24"				$ 166.02
	WW03F00542		Hose Draining Asm   (Replaces: WW02L00015)			Immediately	$ 61.41

    View Diagram in Separate Window       Print Part List
