SELECT A DIAGRAM

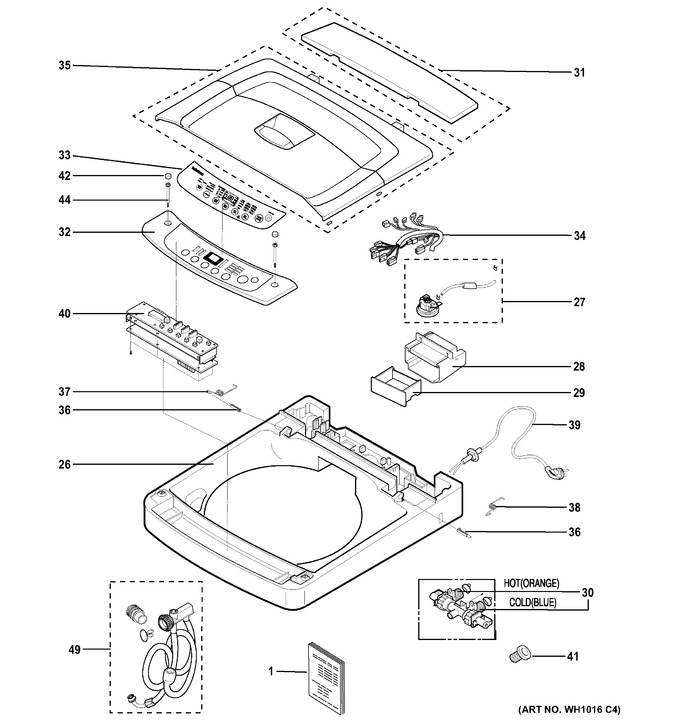

1 - Controls & Top Panel


2 - Cabinet


3 - Tub & Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-90533		Pm Owners & Install		Appelez-nous	-
26	WH44X20600		Cover,top		Appelez-nous	-
27	WH01X20601		Switch Assembly,sensor		Appelez-nous	-
28	WH37X20602		Housing Assembly,deterge		Appelez-nous	-
29	WH47X20603		Box,detergent		Appelez-nous	-
30	WH13X20604		Valve Assembly,inlet		Appelez-nous	-
31	WH15X20605		Panel Assembly,rear		Appelez-nous	-
32	WH15X20606		Panel,front		Appelez-nous	-
33	WH10X22756		Control Panel		Appelez-nous	-
34	WH01X20608		Harness,multi		Appelez-nous	-
35	WH44X20609		Lid Assembly		Appelez-nous	-
36	WH02X20610		Hinge		Appelez-nous	-
37	WH02X20611		Spring,distortion		Appelez-nous	-
38	WH02X20612		Spring,distortion		Appelez-nous	-
39	WH01X20613		Power Cord Assembly		Appelez-nous	-
40	WH18X23074		Pcb Asm		Appelez-nous	-
41	WH02X20615		Damper		Appelez-nous	-
42	WH42X20616		Cap,screw		Appelez-nous	-
44	WH02X20281		Tapping Screw		Appelez-nous	-
49	WH41X20618		Hose Assembly,inlet		Appelez-nous	-
