1 - Controls & Top Panel

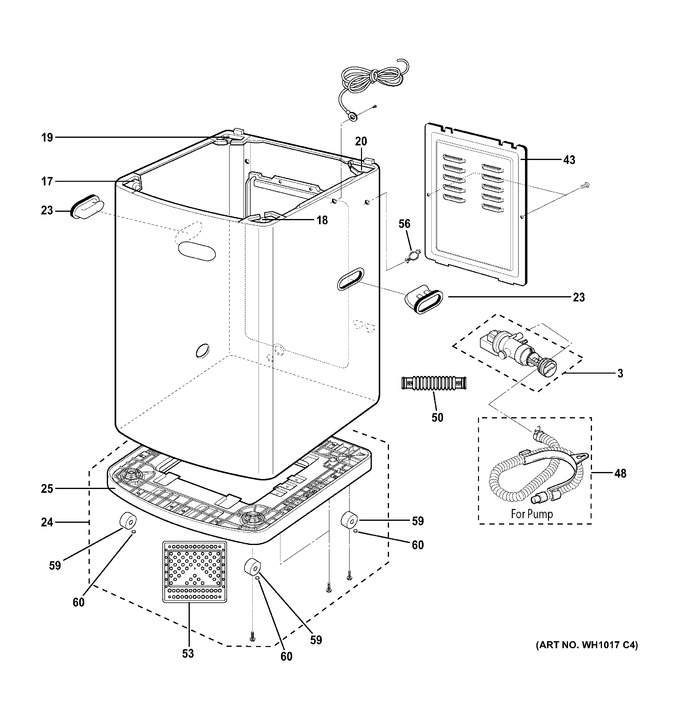

2 - Cabinet
3 - Tub & Motor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WH48X21234 | Drain Pump Asm |
|
- | |||||
| 17 | WH16X20703 | Left Front Pivot Upper |
|
- | |||||
| 18 | WH16X20704 | Right Front Pivot Upper |
|
- | |||||
| 19 | WH16X20705 | Left Rear Pivot Upper |
|
- | |||||
| 20 | WH16X20706 | Right Rear Pivot Upper |
|
- | |||||
| 23 | WH02X20597 | Handle |
|
- | |||||
| 24 | WH17X20598 | Base Assembly,cabinet |
|
- | |||||
| 25 | WH17X20599 | Base,cabinet |
|
- | |||||
| 43 | WH44X20617 | Cover,rear |
|
- | |||||
| 48 | WH41X20621 | Hose,pump |
|
- | |||||
| 50 | WH41X22858 | Hose Pump |
|
- | |||||
| 53 | WH16X22862 | Bottom Access Panel |
|
- | |||||
| 56 | WH02X22864 | Wire Clip Holder |
|
- | |||||
| 59 | WH02X24976 | Lg Wslp Wheel |
|
- | |||||
| 60 | WH02X24975 | Lg Wslp Stopper |
|
- |
