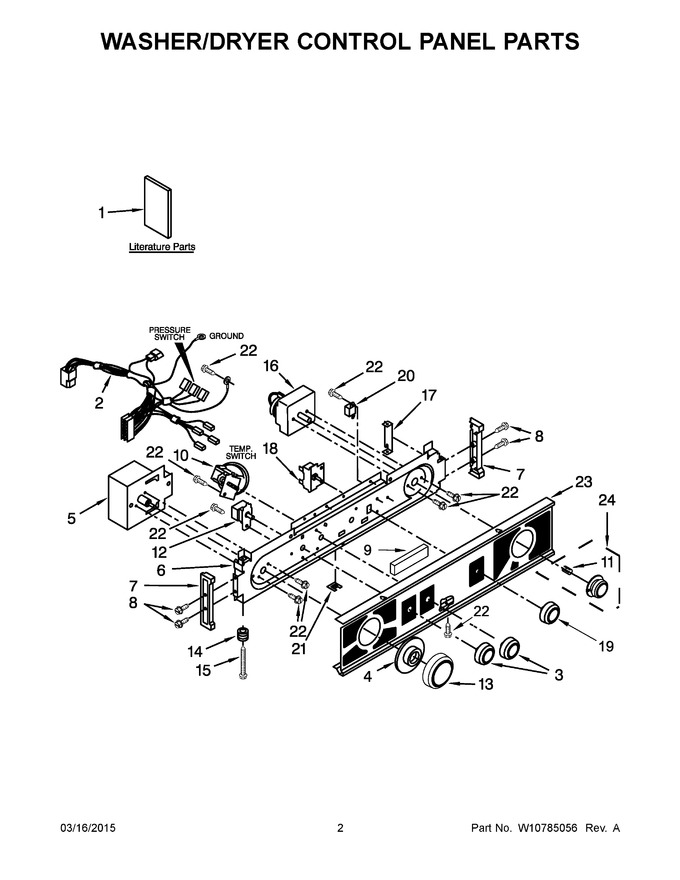

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10761048 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11244135 |
|
Harness, Console Wiring (automatic) (Replaces: W10714843) |
|
|
|
$ 170.43 |
|
|
| 3 |
W11034979 |
|
Assembly, Control Knob (white) (Replaces: W10722056) |
|
|
|
$ 52.13 |
|
|
| 4 |
W11174845 |
|
Dial, Timer (Replaces: W10721959) |
|
|
|
$ 49.41 |
|
|
| 5 |
WP3952499 |
 |
Timer, Control (60 Hz.) (automatic Washer) (Replaces: 3952499) |
|
|
Immediately |
$ 442.89 |
|
|
| 6 |
W10730780 |
|
Bracket, Control |
|
|
|
$ 80.85 |
|
|
| 7 |
3976428 |
|
End Cap, Console |
|
|
|
$ 83.39 |
|
|
| 8 |
8281191 |
|
Screw |
|
|
|
$ 6.77 |
|
|
| 9 |
W10621212 |
|
Gasket, Console |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W10703154 |
|
Switch, Water Level |
|
|
|
$ 181.84 |
|
|
| 11 |
WP688805 |
 |
Clip, Spring (Replaces: 688805) |
|
|
Immediately |
$ 8.20 |
|
|
| 12 |
W11103598 |
|
Switch, Water Temperature (Replaces: W10711271) |
|
|
|
$ 208.66 |
|
|
| 13 |
W11116863 |
|
Assembly, Timer Knob (white) (Replaces: W10721955) |
|
|
Immediately |
$ 49.41 |
|
|
| 14 |
WP693151 |
 |
Spring, Console Lock (Replaces: 693151) |
|
|
|
$ 7.84 |
|
|
| 15 |
WP3400860 |
|
Screw, Console Lock (Replaces: 3400860) |
|
|
|
$ 11.53 |
|
|
| 16 |
WP3406720 |
 |
Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable) (Replaces: 3406720) |
|
|
Immediately |
$ 329.94 |
|
|
| 17 |
WP692983 |
 |
Lock, Console (Replaces: 692983) |
|
|
|
$ 89.33 |
|
|
| 18 |
WPW10503561 |
|
Switch, Push-to-start (Replaces: W10503561) |
|
|
Immediately |
$ 39.45 |
|
|
| 19 |
W10722057 |
|
Knob, Push To Start (white) |
|
|
|
$ 52.49 |
|
|
| 20 |
W10503559 |
|
Buzzer, Mini |
|
|
|
$ 33.33 |
|
|
| 21 |
694037 |
|
Clip, Console |
|
|
|
$ 86.50 |
|
|
| 22 |
WP90767 |
 |
Screw (Replaces: 8533971) |
|
|
Immediately |
$ 8.25 |
|
|
| 23 |
W10696142 |
|
Panel, Control |
|
|
|
$ 378.34 |
|
|
| 24 |
W11104717 |
|
Dial, Timer (white) (Replaces: W10721961) |
|
|
|
$ 47.74 |
|
|
| 1A |
W10746870 |
|
Use And Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 1B |
W10726341 |
|
Wiring Diagram |
|
Appelez-nous
|
- |
|
|
|
| 1C |
W10774927 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
View Diagram in Separate Window
Print Part List
