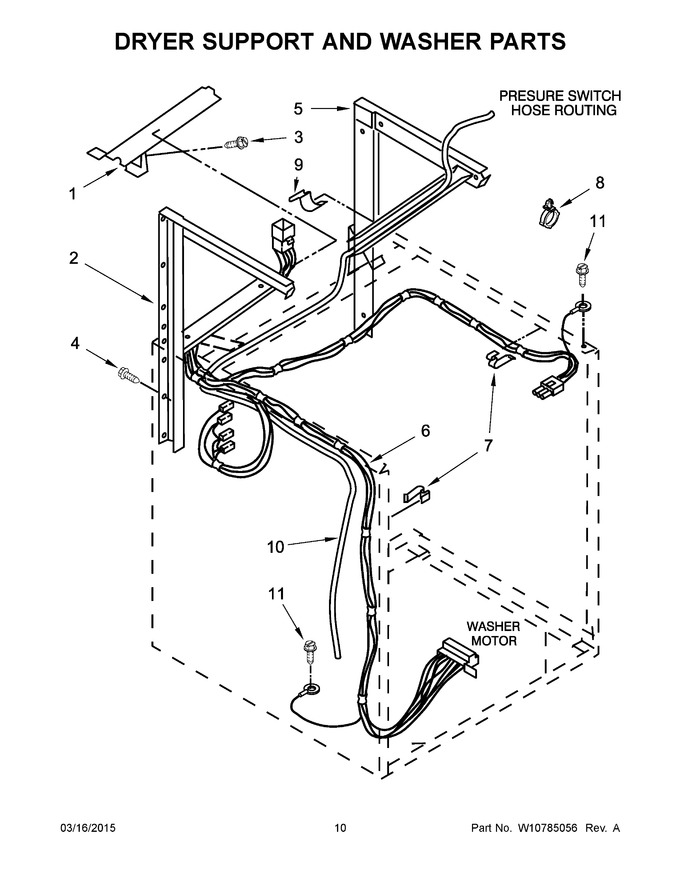

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694304		Cover, Channel		Appelez-nous	-
2	W11174025		Support, Dryer (left Hand)   (Replaces: 692647)				$ 53.47
3	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
4	W11676450		Screw   (Replaces: 3400000)				$ 14.76
5	W11174024		Support, Dryer (right Hand)   (Replaces: 692646)				$ 137.11
6	W10714844		Harness, Lower (automatic)				$ 242.33
7	8528351		Clip, Harness Wiring   (Replaces: 3347812)		Appelez-nous	-
8	8559320		Clip, Push-in   (Replaces: 3352501)				$ 48.14
9	WP90016		Clip, Harness   (Replaces: 90016)				$ 11.89
10	WP353244		Hose, Pressure Switch   (Replaces: 8066080)			Immediately	$ 86.67
11	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 7.30
