SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Ice Maker Parts


10 - Optional Parts

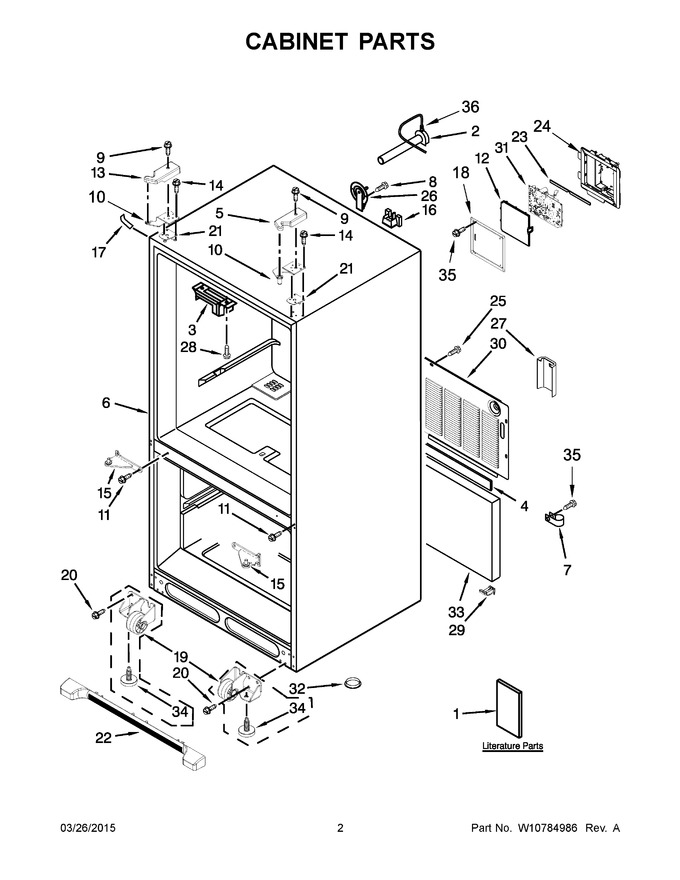

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10636717		Tech Sheet		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 114.15
3	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 13.03
5	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 21.57
6	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
7	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 21.33
8	WP98165		Screw   (Replaces: 12990504)				$ 8.00
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204EDN)				$ 29.09
11	W11573362		Screw   (Replaces: W10339086)				$ 14.02
12	W11226688		Lid, Hv Control Box   (Replaces: W10296541)				$ 81.10
13	WPW10337634		Cover, Left Hinge (white)   (Replaces: 12962301W)			Immediately	$ 22.42
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918113		Hinge, Center (left) (white)   (Replaces: 13000001WD)				$ 93.26
16	W11686793		Block, Fill Tube   (Replaces: W10658542)				$ 22.45
17	12587703W		Cover, Corner (white)				$ 22.90
18	12961602		Cover, Control Box				$ 116.19
19	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 35.57
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	12999501		Shim, Hinge (left Hand)				$ 99.53
22	WPW10534161		Grille, Toe (white)   (Replaces: W10534161)				$ 140.09
23	12957801		Gasket, Control Box		Appelez-nous	-
24	W10257665		Box, Hv Control				$ 50.84
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	W10208593		Guard, Dual Water Valve				$ 14.96
28	W10854958		Screw   (Replaces: 12990302)				$ 7.43
29	W10528513		Sweep, Dual Tube				$ 41.66
30	W10210980		Cover, Unit				$ 193.85
31	WPW10317076		Board, Hv Control   (Replaces: W10317076)			Immediately	$ 393.18
32	A3076901		Plug, Button (black)				$ 5.70
33	12820505		Insulation				$ 71.70
34	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 7.85
35	W11686675		Screw   (Replaces: 12990702)				$ 13.59
36	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
10A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205EDN)			Immediately	$ 29.02
13A	W10337647		Cover, Left Hinge (black)   (Replaces: 12962301B)			Immediately	$ 22.22
13B	WPW10337648		Cover, Left Hinge (grey)   (Replaces: 12962301AP)				$ 22.02
15A	W10918164		Hinge, Center (left) (black)   (Replaces: 13000007ED)				$ 86.64
15B	W10917988		Hinge, Center (left) (grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
15C	13000002WD		Hinge, Center (right) (white)				$ 160.99
15D	W10918164		Hinge, Center (right) (black)   (Replaces: 13000008ED)				$ 86.64
15E	W10917988		Hinge, Center (right) (grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 7.69
19A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 35.57
1A	W10635370		Use And Care Guide		Appelez-nous	-
1B	W10739661		Energy Guide		Appelez-nous	-
21A	12999502		Shim, Hinge (right Hand)				$ 100.60
22A	WPW10534162		Grille, Toe (black)   (Replaces: W10534162)				$ 141.10
22B	WPW10534160		Grille, Toe (grey)   (Replaces: W10534160)			Immediately	$ 72.60
5A	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 21.47
5B	WPW10191117		Cover, Right Hinge (grey)   (Replaces: 12962302APN)				$ 21.95

    View Diagram in Separate Window       Print Part List
