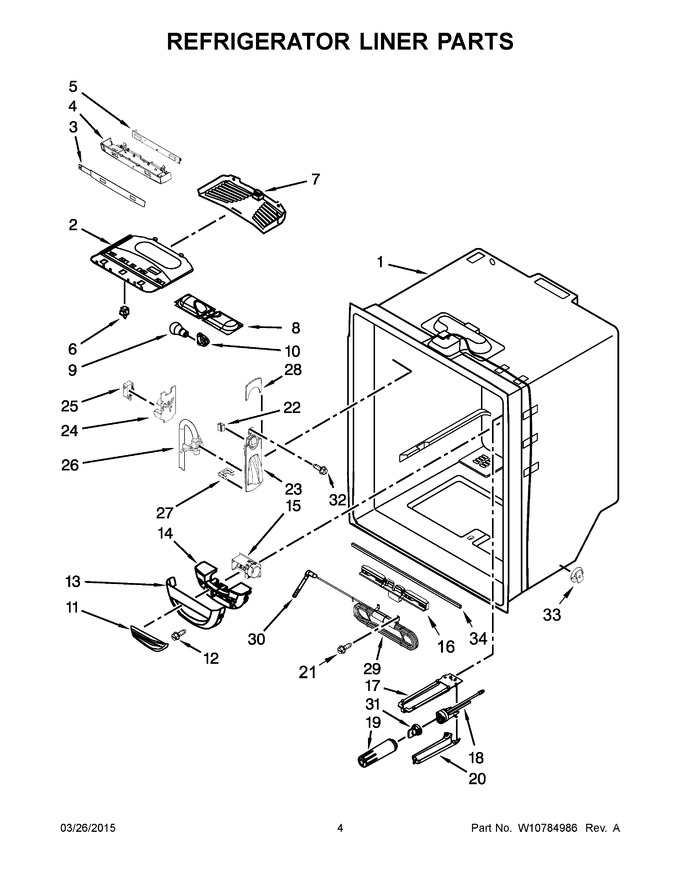

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 108.29 | ||||
| 3 | W11712701 | Overlay (Replaces: W10746278) |
|
$ 198.54 | |||||
| 4 | W11416469 | Module, Control (Replaces: W10464767) |
|
Immediately | $ 223.66 | ||||
| 5 | W10860447 | Board, Control (Replaces: W10625524) |
|
Immediately | $ 331.63 | ||||
| 6 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 7 | W11284721 | Cover, Light (Replaces: 12806501N) |
|
$ 100.97 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 112.13 | ||||
| 9 | W11338583 | Lamp, Led (Replaces: W10745744) |
|
Immediately | $ 102.10 | ||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 47.76 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 171.52 | ||||
| 16 | W10833346 | Insulation, Water Tank (Replaces: W10300461) |
|
Immediately | $ 32.64 | ||||
| 17 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 15.95 | ||||
| 18 | W11808483 | Head, Water Filter (Replaces: W10605367) |
|
$ 154.88 | |||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: W10735404) |
|
Immediately | $ 49.99 | ||||
| 20 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 7.80 | |||||
| 22 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 12.51 | |||||
| 23 | WPW10585703 | Facade, Dispenser (Replaces: W10585703) |
|
Immediately | $ 74.26 | ||||
| 24 | W11515355 | Plate, Dispenser (Replaces: W10585699) |
|
Immediately | $ 8.17 | ||||
| 25 | WP12575501 | Switch, Limit (Replaces: 12575501) |
|
$ 68.90 | |||||
| 26 | W11677725 | Guide, Waterline (Replaces: 12707206) |
|
Immediately | $ 23.58 | ||||
| 27 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 18.24 | |||||
| 28 | W11519867 | Facade, Dispenser (top) (Replaces: 12707005) |
|
Immediately | $ 26.35 | ||||
| 29 | W11229977 | Tank, Water (Replaces: 12706112) |
|
Immediately | $ 101.58 | ||||
| 30 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 31 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 32 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.95 | ||||
| 33 | W10190541 | Mount, Crisper Support |
|
$ 12.58 | |||||
| 34 | W10568045 | Gasket, Seal |
|
$ 23.40 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10273869 | Harness, Refrigerator Control (includes Thermistor) (Replaces: W10273869) |
|
Immediately | $ 130.69 |
