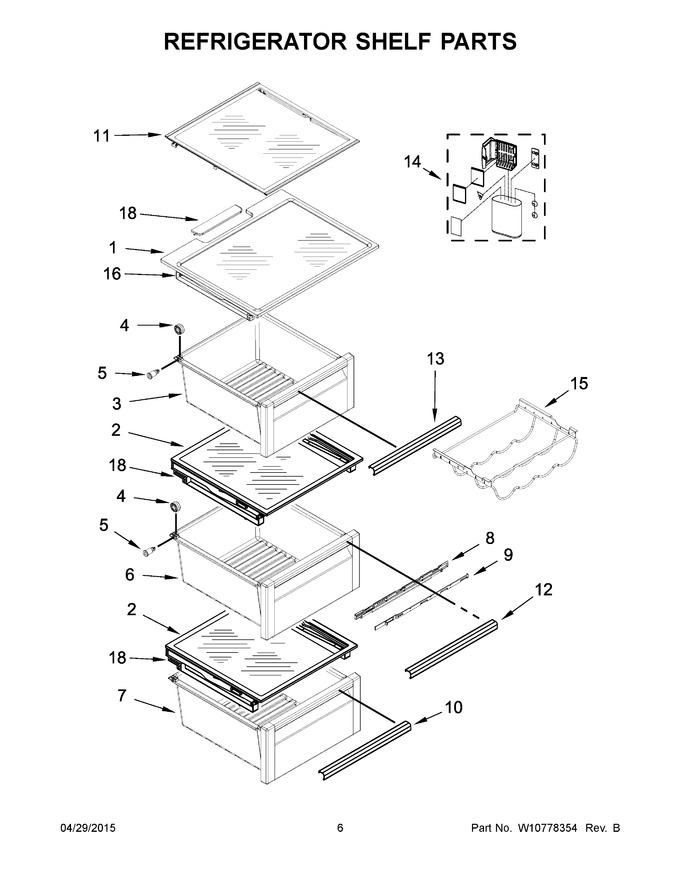

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10444456		Shelf, Snack Pan		Appelez-nous	-
2	W11214973		Cover, Assembly   (Replaces: W10290879)				$ 172.46
3	W10542038		Snack Pan				$ 191.62
4	W11164152		Roller   (Replaces: W10278139)			Immediately	$ 15.74
5	WPW10257246		Axle, Roller   (Replaces: W10257246)				$ 36.54
6	W10531083		Crisper Pan				$ 269.79
7	W10531084		Meat Pan				$ 175.74
8	W10316452		Housing, Humidity				$ 92.65
9	W10257334		Slide, Humidity				$ 61.15
10	W10531025		Trim, Handle   (Replaces: W10531024)		Appelez-nous	-
11	W10327549		Shelf Assembly				$ 110.38
12	W10531025		Trim, Handle		Appelez-nous	-
13	W10542021		Trim, Handle				$ 103.40
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	W10395554		Wine Rack				$ 166.62
16	W11766461		Rail, Track (left Side)   (Replaces: W10247942)				$ 35.54
17	W10257433		Rail, Track (left Side)		Appelez-nous	-
18	W10392413		Shelf, Filler (white)		Appelez-nous	-
16A	W11678966		Rail, Track (right Side)   (Replaces: W10247940)				$ 22.68
17A	W10257431		Rail, Track (right Side)				$ 115.72
