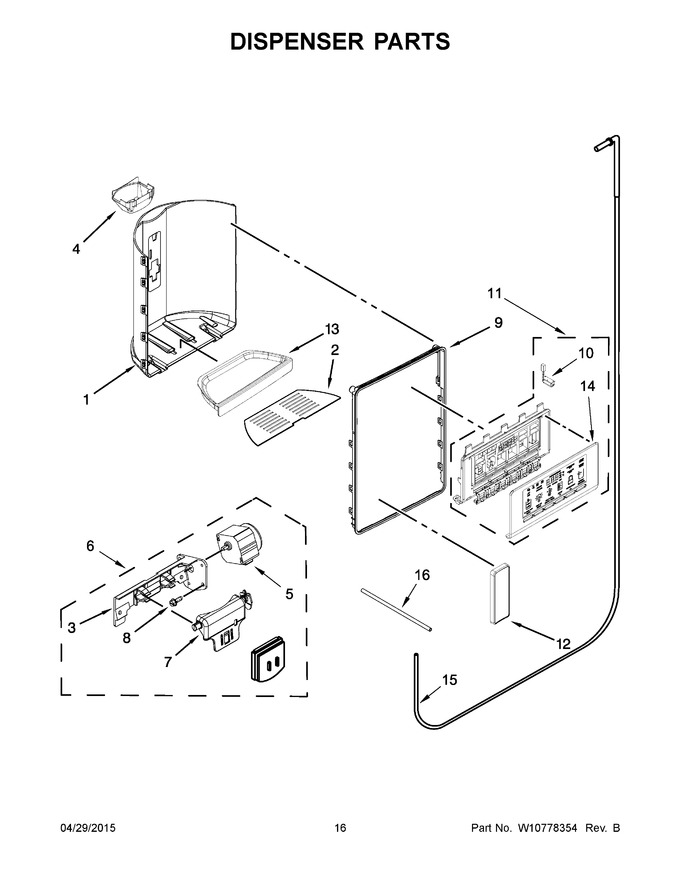

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10276251 | False Wall, Dispenser (stainless) |
|
- | |||||
| 2 | W10276255 | Grate, Drip Tray (stainless) |
|
- | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 76.42 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 23.94 | ||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10781989 | Ice Door Assembly (Replaces: W10353570) |
|
$ 166.39 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W10276248 | Ring, Trim |
|
- | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 11 | W10822638 | User Interface Assembly (Replaces: W10784396) |
|
Immediately | $ 527.12 | ||||
| 12 | WPW10346924 | Pad, Ice And Water (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 | ||||
| 13 | W10276254 | Tray, Housing (satina) |
|
- | |||||
| 14 | W10822638 | Cover, Front (silver) (Replaces: W10298142) |
|
Immediately | $ 527.12 | ||||
| 15 | W10341319 | Water Tube |
|
$ 107.86 | |||||
| 16 | W11620106 | Tube, Water (Replaces: W10691730) |
|
$ 117.84 |
