Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: W10312791) In-Stock Immediately $ 179.58

2 WPW10588164 Housing, Adjuster (includes Spring And Lever) (left Hand)   (Replaces: W10588164) In-Stock Immediately $ 16.84

3 WPW10250160 Clip, Adjuster   (Replaces: W10250160) In-Stock Immediately $ 40.55

4 WPW10546503 Adjuster Assembly   (Replaces: W10546503) In-Stock Immediately $ 43.81

5 WPW10195839 Strap, Tether Adjuster   (Replaces: W10195839) In-Stock Immediately $ 30.81

6 WPW10195840 Positioner, Adjuster   (Replaces: W10195840) In-Stock Immediately $ 51.32

7 WPW10082649 Cupshelf Assembly   (Replaces: W10082649) In-Stock Immediately $ 109.45

8 WPW10267076 Clip, Dispenser Guard   (Replaces: W10267076) Special Order $ 31.56

9 WPW10250162 Cover, Adjuster   (Replaces: W10250162) In-Stock Immediately $ 7.61

10 W11259785 Track, Assembly (left Hand)   (Replaces: W10462359) In-Stock Immediately $ 78.80

11 W11110542 Handle, Dishrack Front   (Replaces: W10473794) Special Order $ 129.58

12 W11110542 Handle, Dishrack Rear   (Replaces: W10473792) Special Order $ 129.58

13 WP8539101 Clip, No Flip   (Replaces: 8539101) Special Order $ 84.22

14 WPW10309090 Screw   (Replaces: W10309090) In-Stock Immediately $ 76.86

15 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

16 WPW10082848 Clip, Cupshelf   (Replaces: W10082848) In-Stock Immediately $ 8.27

17 W10727426 Tine Row, Fold Down   (Replaces: 8562030) In-Stock Immediately $ 85.10

18 WPW10082853 Clip, Pivot   (Replaces: W10082853) In-Stock Immediately $ 5.40

19 WP8539102 Positioner, Dual Dishrack   (Replaces: 8539102) Special Order $ 103.88

20 W11240750 Basket, Utensil Row   (Replaces: W10702379) In-Stock Immediately $ 29.53

10A W11259786 Track, Assembly (right Hand)   (Replaces: W10462358) In-Stock Immediately $ 84.94

2A WPW10588165 Housing, Adjuster (includes Spring And Lever) (right Hand)   (Replaces: W10588165) In-Stock Immediately $ 54.81


    View Diagram in Separate Window     Print Icon   Print Part List

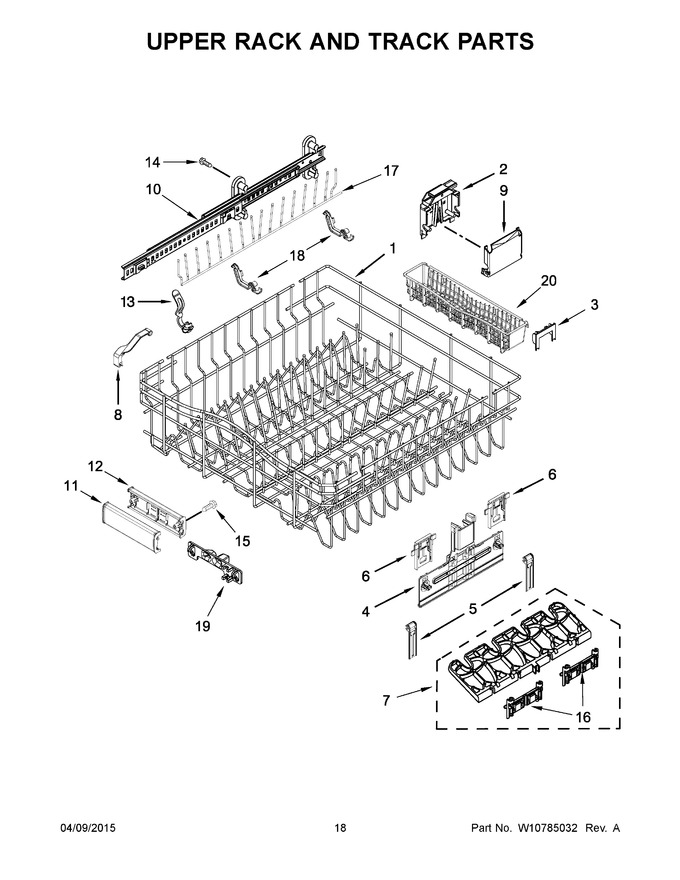

Diagram for KDTE254EWH0
