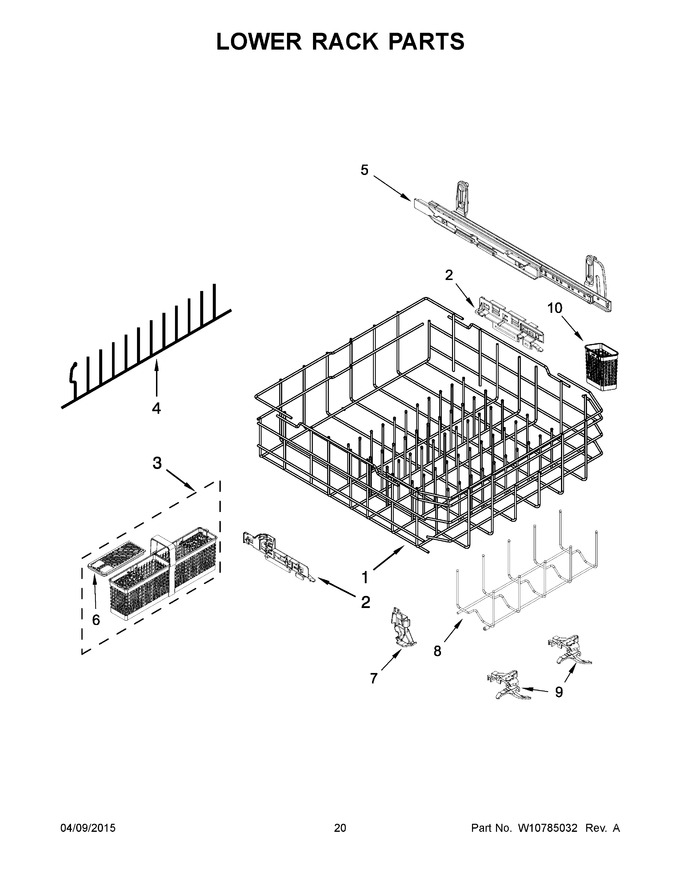

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11838895		Dishrack, Lower   (Replaces: W10713334)				$ 177.40
2	WPW10473807		Support, Rear Carriage (left Hand)   (Replaces: W10473807)			Immediately	$ 35.90
3	W11767095		Basket Assembly, Silverware   (Replaces: W10473836)			Immediately	$ 73.89
4	W10728160		Tine Row, Fold Down   (Replaces: W10056272)			Immediately	$ 49.07
5	W10822165		Track Assembly (left Hand)   (Replaces: W10579131)			Immediately	$ 152.98
6	WPW10473835		Lid, Silverware Basket   (Replaces: W10473835)				$ 28.10
7	W11193827		Support, Front Ski (left Hand)   (Replaces: W10473813)				$ 24.35
8	W10554952		Tine Row, Sliding				$ 127.80
9	W11213333		Retainer, Sliding Tine Row   (Replaces: W10713283)				$ 29.30
10	WPW10482109		Basket, Utensil   (Replaces: W10482109)				$ 93.86
2A	WPW10473809		Support, Rear Carriage (right Hand)   (Replaces: W10473809)			Immediately	$ 35.25
5A	W10822166		Track Assembly (right Hand)   (Replaces: W10579132)			Immediately	$ 167.81
7A	W11197023		Support, Front Ski (right Hand)   (Replaces: W10473817)				$ 33.98
