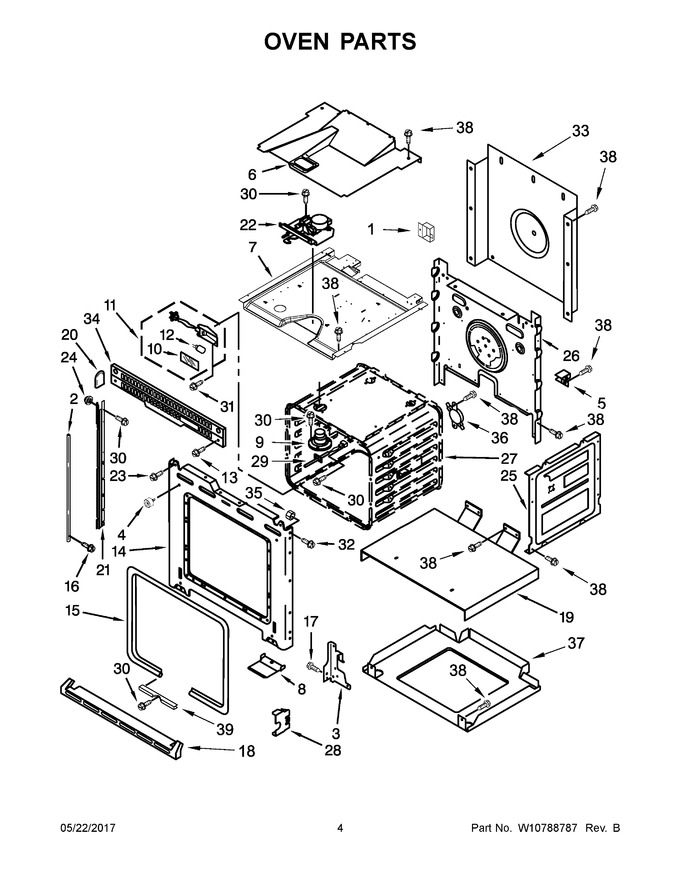

03 - Oven Parts


04 - Top Venting Parts


05 - Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W10756501		Trim, Side (black (left))		Appelez-nous	-
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper & Screw				$ 7.41
5	4449845		Support, Bracket		Appelez-nous	-
6	8302347		Divider, Center Vent		Appelez-nous	-
7	W10784377		Chassis, Top		Appelez-nous	-
8	4455807		Deflector, Vent Box (black)		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	W11121360		Assembly, Oven Light   (Replaces: W10853317)		Appelez-nous	-
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
13	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP8281236		Screw   (Replaces: 8281236)				$ 8.16
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
18	W10339572		Assembly, Bottom Vent Trim (black)		Appelez-nous	-
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
23	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
24	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis				$ 150.69
26	W10784207		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	4452152		Bracket, Bottom Vent				$ 35.18
29	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
30	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
31	W10850807		Screw   (Replaces: W10720084)				$ 7.77
32	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
33	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
34	W10358914		Trim, Center		Appelez-nous	-
35	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
36	W11034459		Thermostat (upper)   (Replaces: W10777627)				$ 188.51
37	4450525		Base, Chassis		Appelez-nous	-
38	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
39	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
18A	W10339573		Assembly, Bottom Vent Trim (white)		Appelez-nous	-
18B	W11193481		Assembly, Bottom Vent Trim (stainless)   (Replaces: W10144973)				$ 139.72
21A	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
2A	W10756502		Trim, Side (black (right))				$ 247.70
2B	W10756497		Trim, Side (white (left))		Appelez-nous	-
2C	W10756498		Trim, Side (white (right))		Appelez-nous	-
2D	WPW10144986		Trim, Side (stainless (left))   (Replaces: W10144986)				$ 236.58
2E	WPW10144985		Trim, Side (stainless (right))   (Replaces: W10144985)				$ 226.21
36A	W11165152		Thermostat (lower)   (Replaces: W10774836)				$ 191.17
3A	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
8A	W10145009		Deflector, Vent Box (stainless)				$ 81.61
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22
