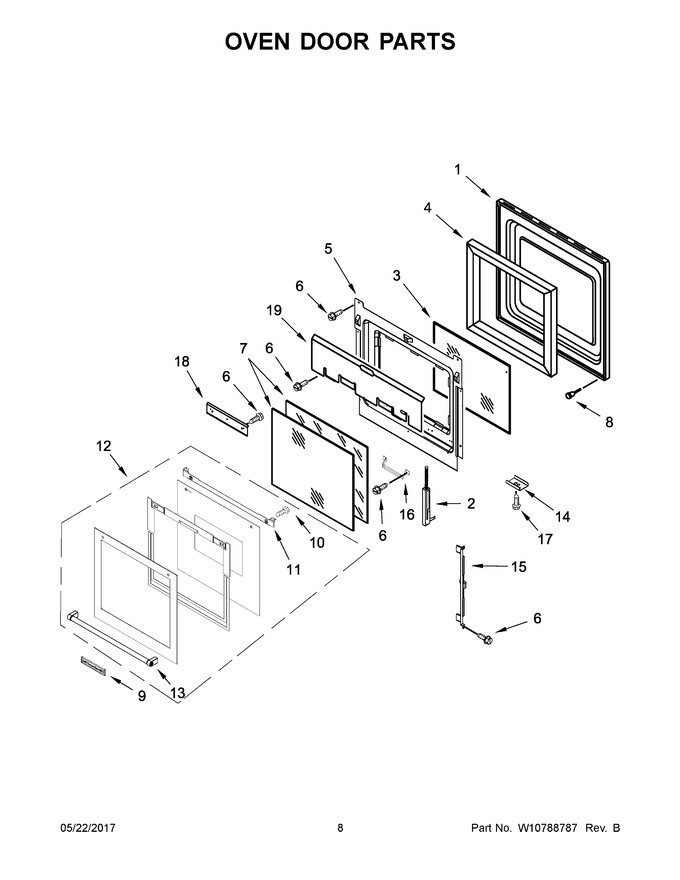

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 351.88
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 111.96
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 184.30
4	W11688413		Insulation, Door   (Replaces: 4451720)				$ 26.92
5	4457130		Retainer, Glass		Appelez-nous	-
6	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
7	WP9759223		Glass, Inner   (Replaces: 9759223)				$ 198.29
8	4448520		Bumper, Door				$ 22.25
9	W10909682		Badge (grey (lower Door Only))   (Replaces: W10518672)			Immediately	$ 76.20
10	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 8.78
11	W10708952		Bracket, Handle		Appelez-nous	-
12	W10801069		Assembly, Door (black)   (Replaces: W10692493)		Appelez-nous	-
13	W10737395		Assembly, Door Handle (stainless)		Appelez-nous	-
14	W10789034		Clip, Retainer (black)		Appelez-nous	-
15	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 187.50
16	9759230		Bracket, Central				$ 36.30
17	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
18	4457112		Shield, Heat Bottom		Appelez-nous	-
19	4457101		Shield, Heat		Appelez-nous	-
12A	W10801070		Assembly, Door (white)   (Replaces: W10692494)				$ 759.66
12B	W10801071		Assembly, Door (stainless)   (Replaces: W10692415)				$ 772.86
14A	W10789033		Clip, Retainer (white)		Appelez-nous	-
14B	W10789032		Clip, Retainer (stainless)		Appelez-nous	-
2A	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 114.51

    View Diagram in Separate Window       Print Part List
