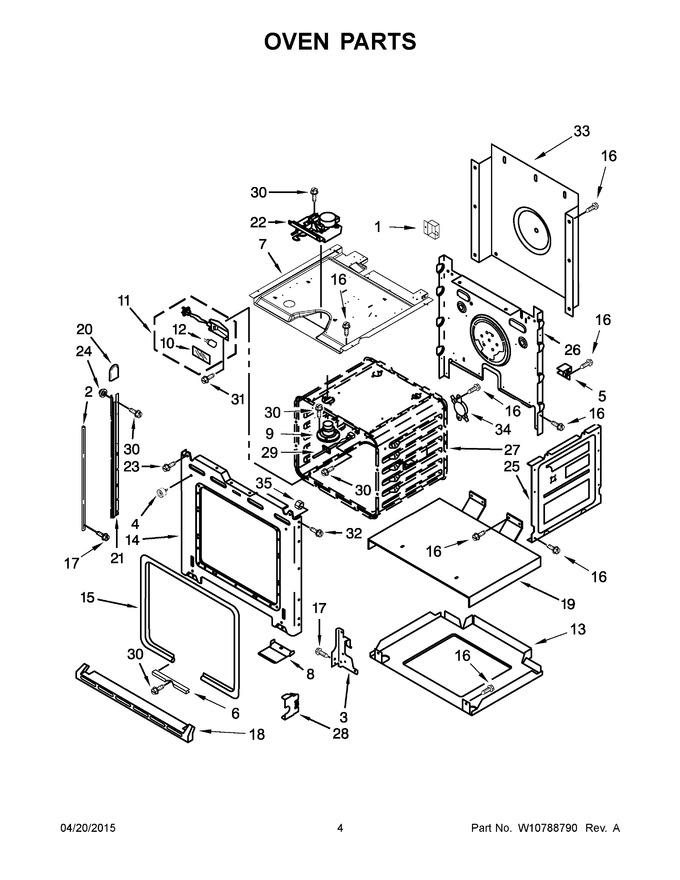

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W10144984		Trim, Side (stainless (left))				$ 148.16
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper & Screw				$ 7.41
5	4449845		Support, Bracket		Appelez-nous	-
6	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
7	W10784377		Chassis, Top		Appelez-nous	-
8	W10145009		Deflector, Vent Box (stainless)				$ 81.61
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	WPW10307114		Assembly, Oven Light   (Replaces: W10307114)			Immediately	$ 116.01
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
13	4450525		Base, Chassis		Appelez-nous	-
14	9760754		Frame, Front				$ 132.66
15	WP4455380		Gasket, Door   (Replaces: 4455380)			Immediately	$ 174.79
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
17	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
18	W11193481		Assembly, Bottom Vent Trim (stainless)   (Replaces: W10144973)				$ 139.72
19	4451476		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
22	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
23	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
24	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
25	W10782197		Side, Chassis				$ 150.69
26	W10784207		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	4452152		Bracket, Bottom Vent				$ 35.18
29	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
30	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
31	4449748		Screw				$ 14.23
32	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
33	WP4451747		Cover, Back   (Replaces: 4451747)				$ 150.07
34	W11034459		Thermostat   (Replaces: W10777627)				$ 188.51
35	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
21A	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
2A	WPW10144983		Trim, Side (stainless (right))   (Replaces: W10144983)				$ 164.76
3A	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP4449314		Insulation, Wrap   (Replaces: 4449314)				$ 189.64
NI	WP4450363		Insulation, Back   (Replaces: 4450363)				$ 189.22

    View Diagram in Separate Window       Print Part List
