View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Top Venting Parts
05 - Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

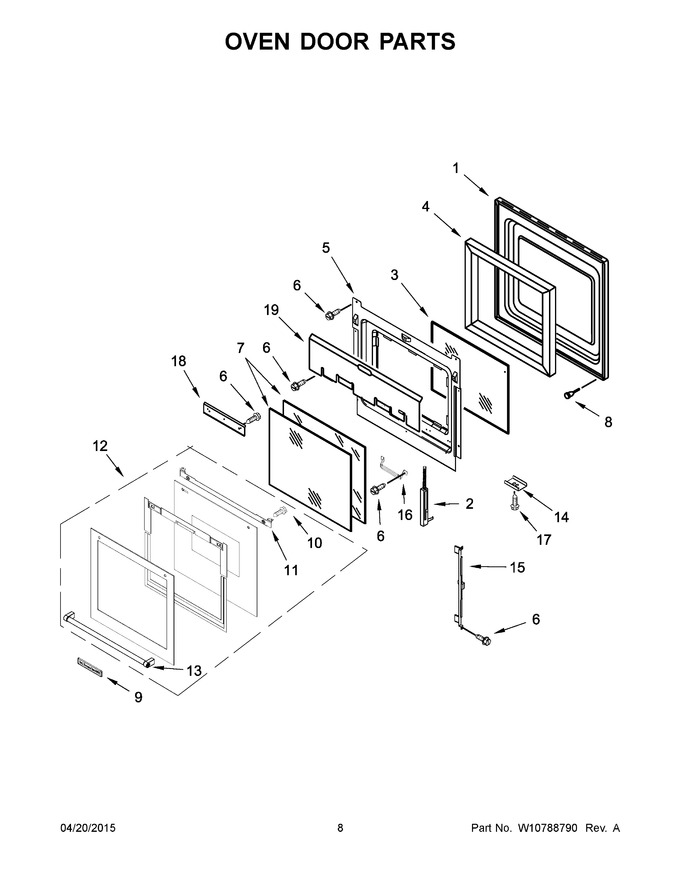

| 1 | WP8303698 | Liner, Door (Replaces: 8303698) |
|
$ 351.88 | |||||
| 2 | WP9760572 | Hinge, Door (left) (Replaces: 9760572) |
|
$ 111.96 | |||||
| 3 | WP4449247 | Glass, Inner (Replaces: 4449247) |
|
$ 184.30 | |||||
| 4 | W11688413 | Insulation, Door (Replaces: 4451720) |
|
$ 26.92 | |||||
| 5 | 4457130 | Retainer, Glass |
|
- | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 7 | WP9759223 | Glass, Inner (Replaces: 9759223) |
|
$ 198.29 | |||||
| 8 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 9 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 10 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 11 | W10708952 | Bracket, Handle |
|
- | |||||
| 12 | W10801071 | Assembly, Door (stainless) (Replaces: W10692415) |
|
$ 772.86 | |||||
| 13 | W10737395 | Assembly, Door Handle (stainless) |
|
- | |||||
| 14 | W10789032 | Clip Retainer (stainless) |
|
- | |||||
| 15 | WP9759229 | Bracket, Side (Replaces: 9759229) |
|
$ 187.50 | |||||
| 16 | 9759230 | Bracket, Central |
|
$ 36.30 | |||||
| 17 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 18 | 4457112 | Shield, Heat Bottom |
|
- | |||||
| 19 | 4457101 | Shield, Heat |
|
- | |||||
| 2A | WP9760571 | Hinge, Door (right) (Replaces: 9760571) |
|
Immediately | $ 114.51 |
