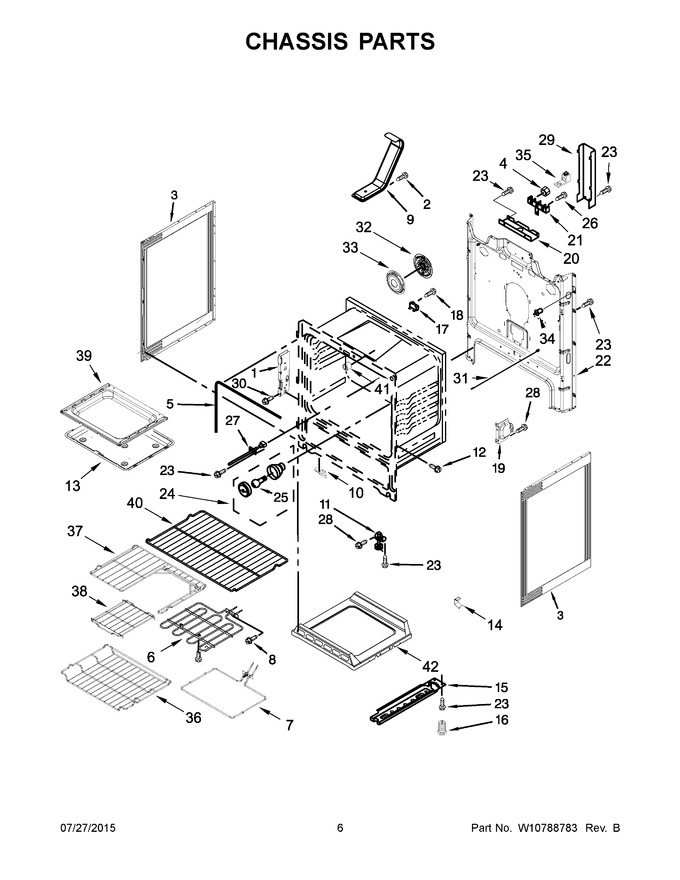

04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 2 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 148.71 | |||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 87.76 | ||||
| 6 | W11321472 | Element, Broil (Replaces: W10544951) |
|
Immediately | $ 112.54 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 61.45 | ||||
| 8 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 9 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 263.00 | ||||
| 10 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 82.86 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 22 | N/P | Back, Main |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 66.87 | ||||
| 32 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 77.67 | ||||
| 33 | W11441001 | Assembly, Convection (Replaces: W10617484) |
|
Immediately | $ 136.09 | ||||
| 34 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 36 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 132.50 | ||||
| 37 | W10205526 | Rack, Oven (partial) |
|
$ 130.85 | |||||
| 38 | W10186592 | Rack, Oven (insert) |
|
Immediately | $ 107.44 | ||||
| 39 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 164.22 | ||||
| 40 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 122.16 | ||||
| 41 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 42 | W10726740 | Shield, Heat |
|
$ 145.01 | |||||
| 15A | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 3A | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| NI | WPW10225524 | Insulation, Back (Replaces: W10225524) |
|
$ 114.68 | |||||
| NI | WPW10225523 | Insulation, Bottom (Replaces: W10225523) |
|
$ 120.25 | |||||
| NI | 4820F015-59 | Insulation, Strap |
|
$ 9.79 | |||||
| NI | WPW10194393 | Insulation, Wrap (Replaces: W10194393) |
|
$ 129.15 |
