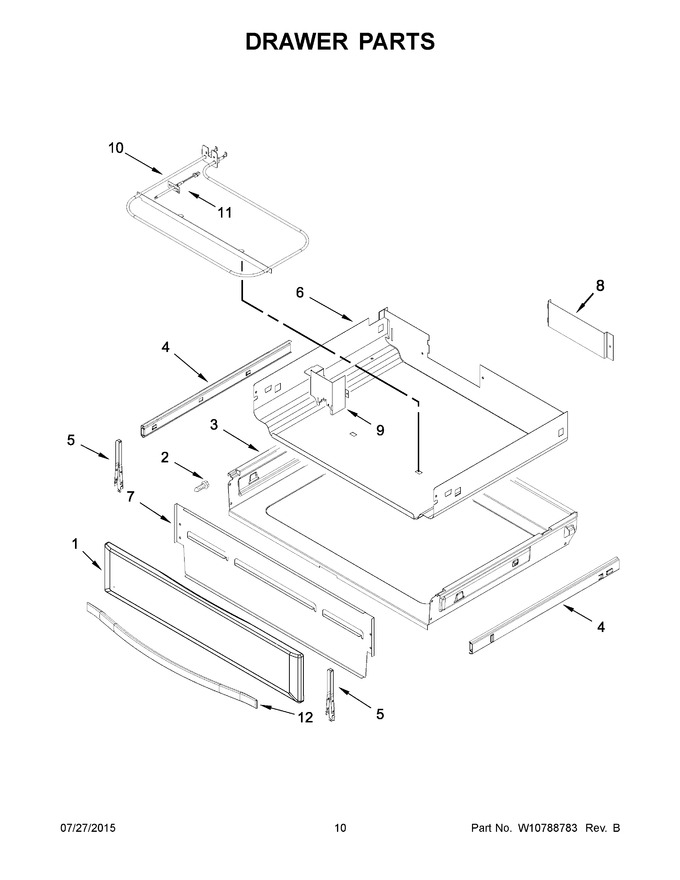

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330056 | Panel, Drawer Front (white) |
|
$ 183.53 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 4 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 120.16 | |||||
| 6 | W10634260 | Enclosure, Warming |
|
Immediately | $ 209.02 | ||||
| 7 | W10748083 | Panel, Inner Drawer |
|
$ 174.81 | |||||
| 8 | W10325438 | Cover, Panel |
|
$ 156.99 | |||||
| 9 | W10634259 | Cover, Wire |
|
$ 87.84 | |||||
| 10 | WPW10323181 | Element, Warm (Replaces: W10323181) |
|
$ 132.08 | |||||
| 11 | WPW10131827 | Sensor, Oven (Replaces: W10131827) |
|
$ 275.58 | |||||
| 12 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 175.54 | ||||
| 1A | W11190206 | Panel, Drawer Front (black) (Replaces: W10330057) |
|
$ 202.78 | |||||
| 1B | W11334144 | Panel, Drawer Front (stainless) (Replaces: W10330059) |
|
$ 213.13 | |||||
| 4A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 |
