SELECT A DIAGRAM

01 - Cover Sheet

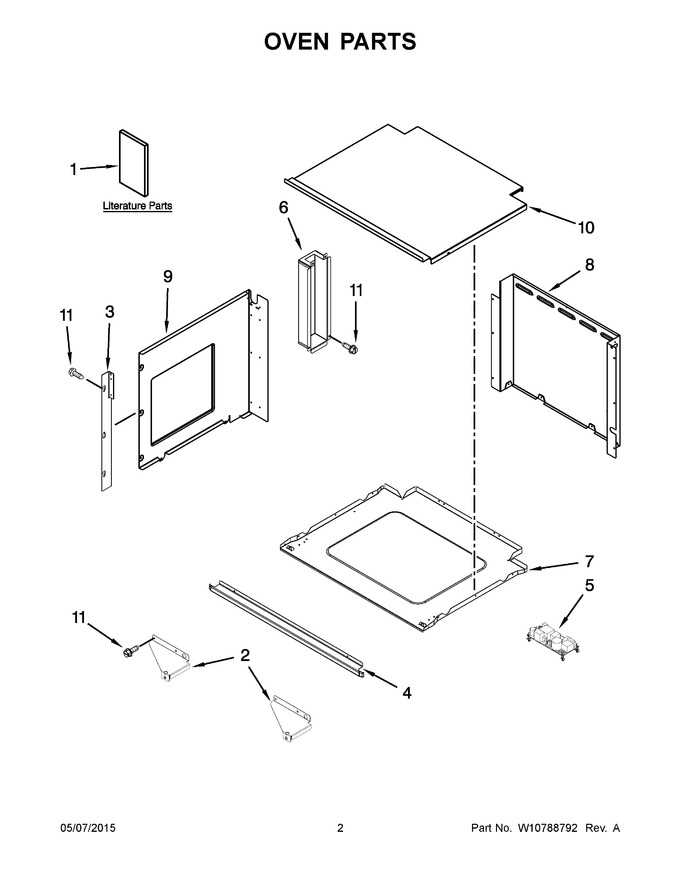

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10221385		Installation Instructions		Appelez-nous	-
2	W10239156		Bracket, Lower (left)				$ 21.24
3	W10283693		Trim, Side		Appelez-nous	-
4	W10284663		Trim, Bottom				$ 88.94
5	WPW10286791		Supply, Power   (Replaces: W10286791)			Immediately	$ 278.96
6	W10239155		Box, Conduit				$ 103.20
7	N/P		Panel, Bottom (not Serviced)		Appelez-nous	-
8	N/P		Panel, Backguard (not Serviced)		Appelez-nous	-
9	N/P		Panel, Side (not Serviced)		Appelez-nous	-
10	N/P		Panel, Top (not Serviced)		Appelez-nous	-
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
1A	W10075750		Installation Instructions (english/french)		Appelez-nous	-
1B	W10221391		Use And Care Guide (microwave)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10213735		Tech Sheet (english)		Appelez-nous	-
1F	W10213736		Tech Sheet (french)		Appelez-nous	-
2A	W10239157		Bracket, Lower (right)				$ 20.73
NI	W10288001		Miscellaneous Parts, Microswitch (sdt-s-124lmr Oeg)		Appelez-nous	-
NI	W10288002		Miscellaneous Parts, Microswitch (g5g-1a-ps 24v)		Appelez-nous	-
NI	4450800		Miscellaneous Parts, Screw, Grounding				$ 13.47
NI	7401P099-60		Miscellaneous Parts, Housing, Amp				$ 5.62
NI	W11356992		Miscellaneous Parts, Conduit   (Replaces: W10209041)				$ 223.29
NI	W10277591		Miscellaneous Parts, Harness, Comm Mwo			Immediately	$ 73.17
NI	W10277650		Miscellaneous Parts, Harness, Comm Smps				$ 18.17
