01 - Cover Sheet
02 - Oven Parts
03 - Control Panel Parts

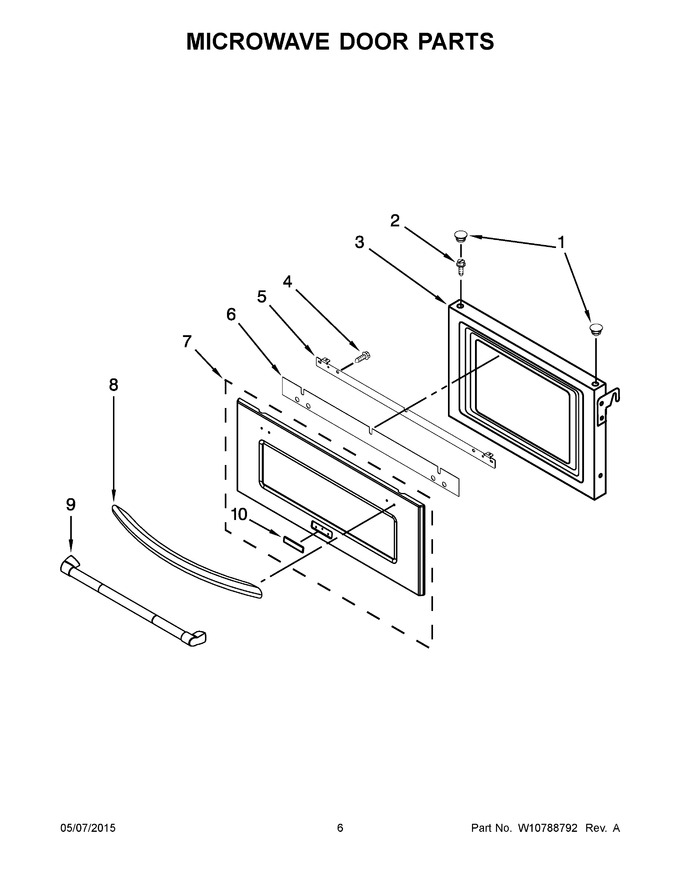

04 - Microwave Door Parts
05 - Cabinet And Stirrer Parts
06 - Internal Microwave Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 3 | W10737655 | Door, Microwave |
|
$ 309.83 | |||||
| 4 | W10267047 | Screw |
|
$ 13.47 | |||||
| 5 | W10176199 | Bracket, Handle (stainless) |
|
$ 42.18 | |||||
| 6 | W10314607 | Spacer, Handle |
|
- | |||||
| 7 | WPW10176200 | Glass Assembly (black) (Replaces: W10176200) |
|
$ 449.39 | |||||
| 8 | W10186755 | Handle, Door (black) |
|
$ 280.79 | |||||
| 9 | W10856834 | Handle, Door (pro-style) (Replaces: W10187014) |
|
$ 335.74 | |||||
| 10 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 85.95 | |||||
| 10A | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 85.95 | |||||
| 10B | WPW10159578 | Badge (stainless (pro-style Models)) (Replaces: W10159578) |
|
Immediately | $ 88.54 | ||||
| 5A | W10281176 | Bracket, Handle (pro-style) |
|
$ 53.81 | |||||
| 7A | W10269421 | Glass Assembly (stainless) |
|
- | |||||
| 7B | W10269423 | Glass Assembly (pro-style) |
|
- | |||||
| 8A | W10186756 | Handle, Door (stainless) |
|
$ 139.42 |
