01 - Cover Sheet
02 - Cooktop Parts

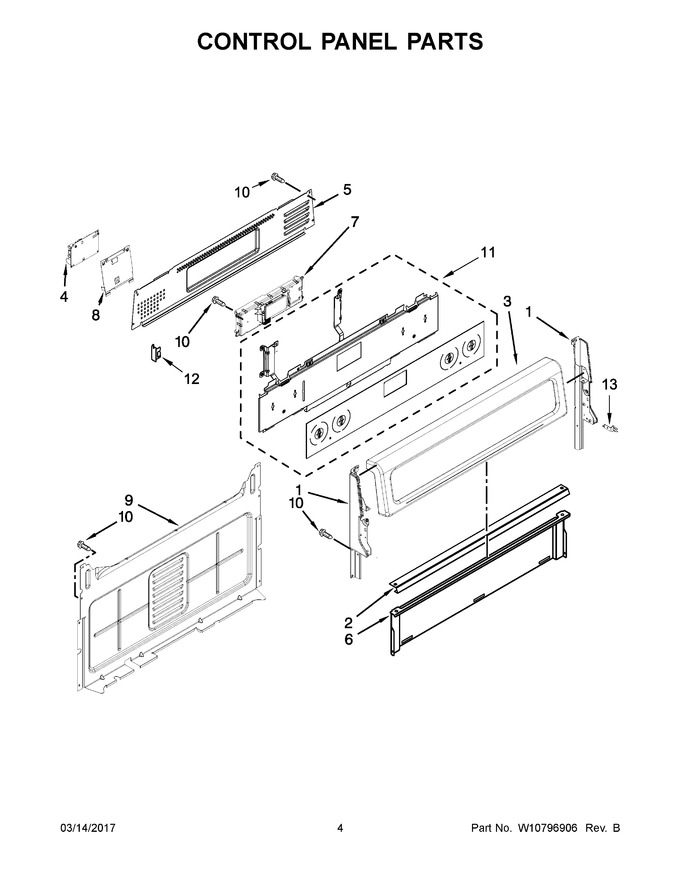

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11404310 | Endcap (black (left)) (Replaces: W10409002) |
|
$ 77.00 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W11164063 | Console (stainless) (Replaces: W10645848) |
|
Immediately | $ 518.62 | ||||
| 4 | WPW10511278 | Module, Spark Dsi (Replaces: W10511278) |
|
Immediately | $ 239.59 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | W11088879 | Control, Maxwell (Replaces: W10643265) |
|
$ 501.60 | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W10692153 | Assembly, Active Overlay (black) |
|
$ 373.71 | |||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 13 | 8523412 | Bracket, Rear Cooktop |
|
$ 167.90 | |||||
| 1A | W10409003 | Endcap (black (right)) |
|
$ 84.09 |
