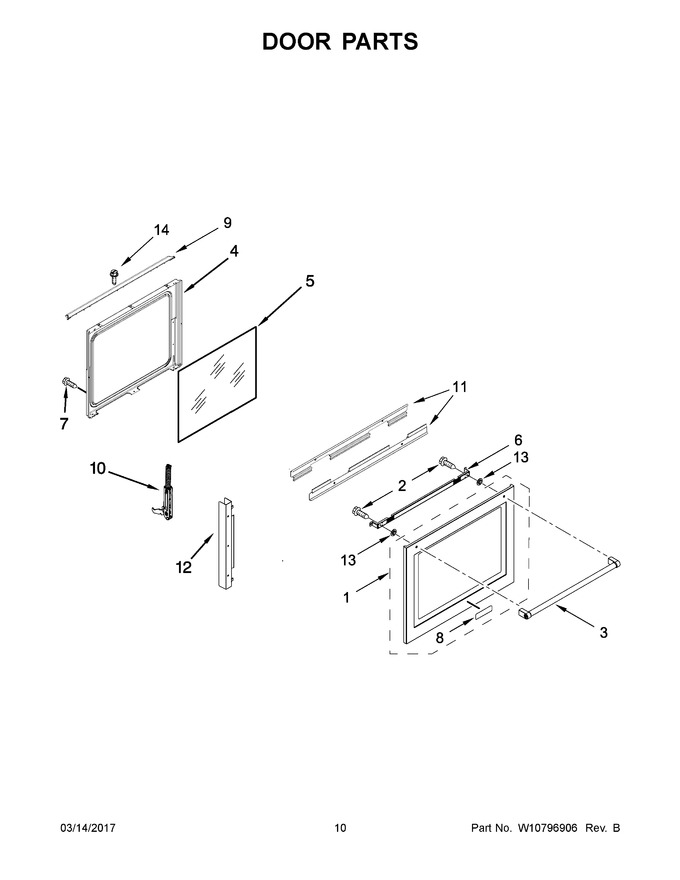

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10906445 | Assembly, Outer Door (stainless) (Replaces: W10692526) |
|
$ 513.29 | |||||
| 2 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 3 | W11104399 | Handle, Door (stainless) (Replaces: W10551000) |
|
$ 237.48 | |||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 384.65 | |||||
| 6 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | W10909682 | Badge (grey) (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 9 | W10675397 | Scoop, Door |
|
$ 141.74 | |||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10541883 | Hinge, Support Rail |
|
$ 44.90 | |||||
| 13 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 14 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 |
