SELECT A DIAGRAM

01 - Cover Sheet

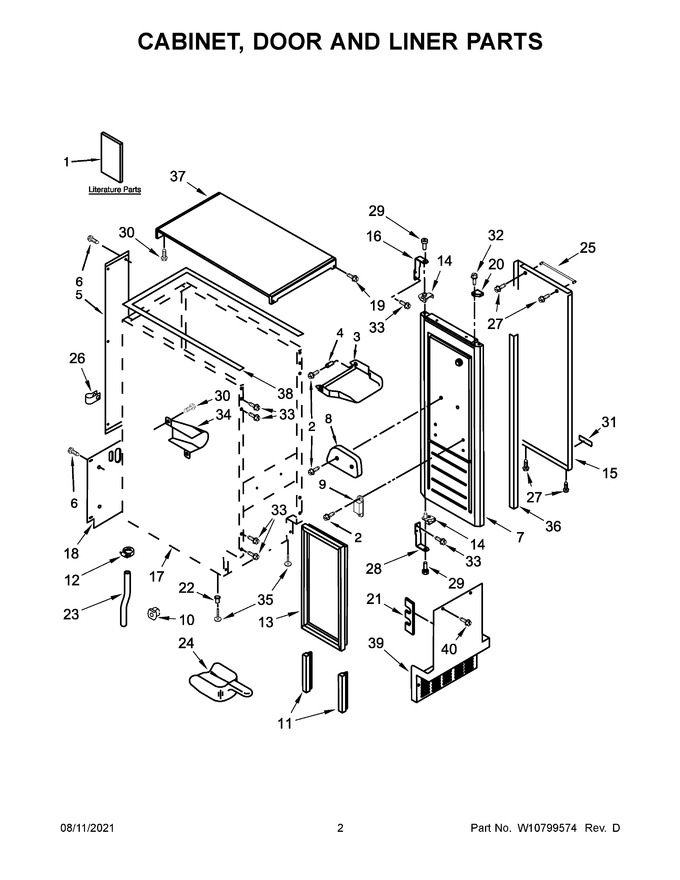

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541605		Use & Care Guide		Appelez-nous	-
2	3400886		Screw (stainless)				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	W10512905Q		Door (white)   (Replaces: W10512905)		Appelez-nous	-
8	W10486874		Cam, Door		Appelez-nous	-
9	W11223751		Assembly, Magnetic Catch   (Replaces: W10529250)				$ 62.40
10	W10136999		Nut, Push-in		Appelez-nous	-
11	2217367		Gasket, Bottom		Appelez-nous	-
12	W10670799		Clamp, Hose			Immediately	$ 24.87
13	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
14	W10486558		Stop, Top Door (white)		Appelez-nous	-
15	W10729875		Wrap, Door (white)		Appelez-nous	-
16	W10476704		Hinge, Top (white)		Appelez-nous	-
17	WPW10136199		Cabinet And Liner (not Serviced)   (Replaces: W10136199)				$ 108.85
18	W11788665		Cover, Unit   (Replaces: 8534075)				$ 12.77
19	W11309713		Screw (black)   (Replaces: W10501828)		Appelez-nous	-
20	W11309714		Filler, Top Endcap (white)   (Replaces: W10501848)		Appelez-nous	-
21	3400240		Pad, Foam		Appelez-nous	-
22	W10737551		Nut				$ 74.12
23	W11420408		Tube, Drain   (Replaces: W10493422)				$ 28.61
24	W11450233		Scoop   (Replaces: W10710254)				$ 181.46
25	WP488366		Handle, Door (stainless)   (Replaces: 2208136)				$ 11.92
26	WP3400237		Clip, Water Tube   (Replaces: 3400237)				$ 8.11
27	W10476697		Screw		Appelez-nous	-
28	W10476696		Hinge, Bottom (white)				$ 40.64
29	WP250830		Pin, Hinge   (Replaces: 489048)				$ 8.78
30	W10909682		Screw   (Replaces: W10518673)			Immediately	$ 76.20
31	348689		Nameplate				$ 78.07
32	W11661566		Screw   (Replaces: W10495263)				$ 14.73
33	W10495264		Screw (white)				$ 10.80
34	8193716		Holder, Scoop   (Replaces: 3374849)			Immediately	$ 88.96
35	W10619836		Leg, Leveling		Appelez-nous	-
36	W10512750		Grommet, Edge Guard		Appelez-nous	-
37	W10320117		Panel, Top (white)		Appelez-nous	-
38	WP2185571W		Gasket, Top Panel   (Replaces: 2185571W)				$ 146.35
39	WP2185571B		Grill, Front (white)   (Replaces: 2185571B)				$ 241.63
40	W10531302		Screw (black)		Appelez-nous	-
14A	W10486560		Stop, Bottom Door (white)		Appelez-nous	-
14B	W10486559		Stop, Top Door (black)				$ 34.53
14C	W10486561		Stop, Bottom Door (black)		Appelez-nous	-
15A	W10729876		Wrap, Door (black)		Appelez-nous	-
15B	W10786919		Wrap, Door (stainless)				$ 596.58
16A	W10476703		Hinge, Top (black)				$ 40.54
1A	W10761663		Installation Instructions		Appelez-nous	-
1B	W10761657		Tech Sheet		Appelez-nous	-
20A	W10501833		Filler, Bottom Endcap (white)		Appelez-nous	-
20B	W10501849		Filler, Top Endcap (black)		Appelez-nous	-
20C	W10532250		Filler, Bottom Endcap (black)		Appelez-nous	-
28A	2185712		Hinge, Bottom (black)				$ 49.37
33A	2185927		Screw (black)				$ 89.07
37A	W11624957		Panel, Top (black)   (Replaces: 2217293)		Appelez-nous	-
39A	W11447718		Screw (white)   (Replaces: W10531303)			Immediately	$ 14.74
7A	W10502166Q		Door (black)   (Replaces: W10502166)				$ 879.95
