Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11542867 Pump, Recirculating (includes Sensor)   (Replaces: W10747426) In-Stock Immediately $ 256.88

2 W11679650 Bracket, Pump   (Replaces: W10489129) Special Order $ 50.26

3 W11126268 Assembly, Pump Wire   (Replaces: W10764770) Special Order $ 114.51

4 W11741505 Sensor, Water (for Stainless Models Only)   (Replaces: W10485962) Special Order $ 288.11

1A W11566406 Pump, Recirculating (for Stainless Models Only)   (Replaces: W10489122) Special Order $ 141.38


    View Diagram in Separate Window     Print Icon   Print Part List

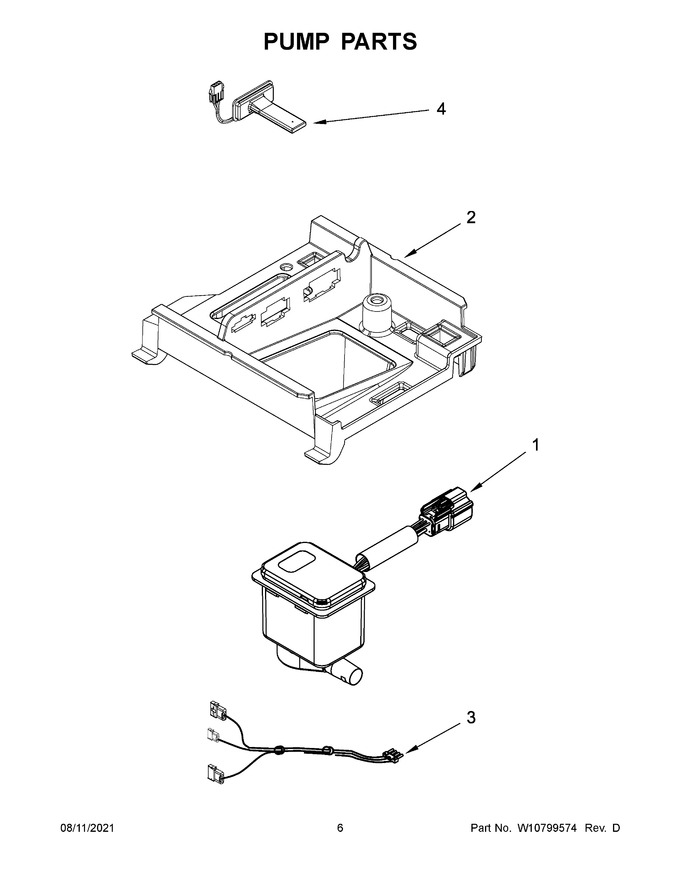

Diagram for KUIX305EWH0
