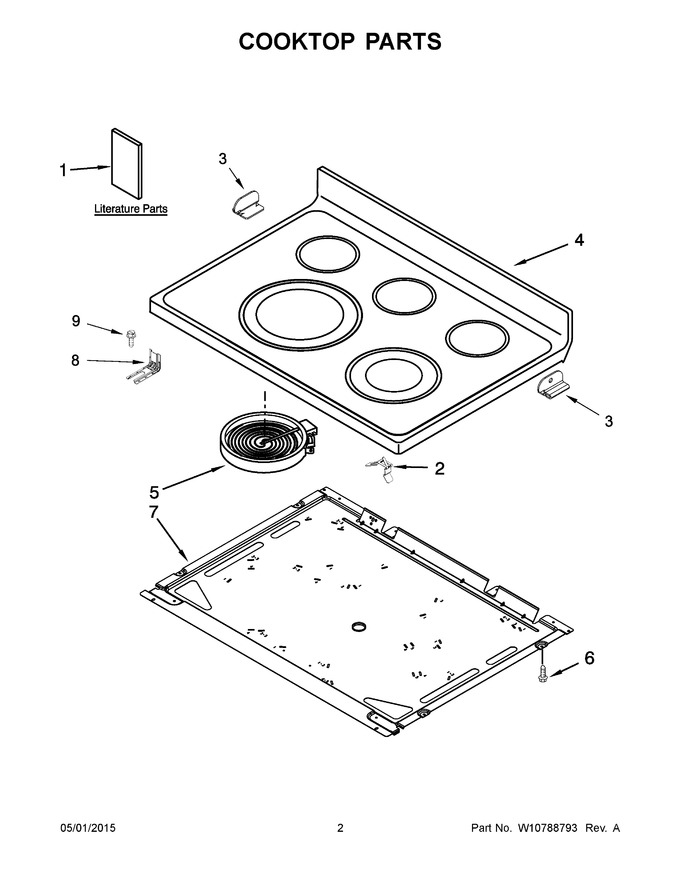

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 4 | W10472039 | Cooktop (white) (Replaces: W10411866) |
|
$ 657.15 | |||||
| 5 | W10823727 | Element (3000/1900w) (left Front) (Replaces: W10162040) |
|
Immediately | $ 342.63 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 9 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10719732 | Use And Care Guide |
|
- | |||||
| 1B | W10723213 | Tech Sheet (english) |
|
- | |||||
| 1C | W10723214 | Tech Sheet (french) |
|
- | |||||
| 1D | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1E | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1F | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| 4A | W10472038 | Cooktop (black) (Replaces: W10410542) |
|
$ 756.59 | |||||
| 5A | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5B | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 5C | W11517959 | Element (3000/1400w) (right Front) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 5D | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 132.95 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11134592 | Harness, Warm Zone (Replaces: W10174460) |
|
$ 117.26 | |||||
| NI | W10324944 | Harness, Sensor |
|
$ 31.37 | |||||
| NI | W10324946 | Harness, Wire (drawer) |
|
$ 29.03 | |||||
| NI | W11188421 | Harness, Wire (cooktop Right) (Replaces: W10349696) |
|
Immediately | $ 214.26 | ||||
| NI | W10349721 | Harness, Wire (cooktop Left) |
|
$ 61.28 | |||||
| NI | W10708616 | Harness, Main |
|
$ 182.34 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10065852 | Tips, Safe Cooking (french) |
|
- |
