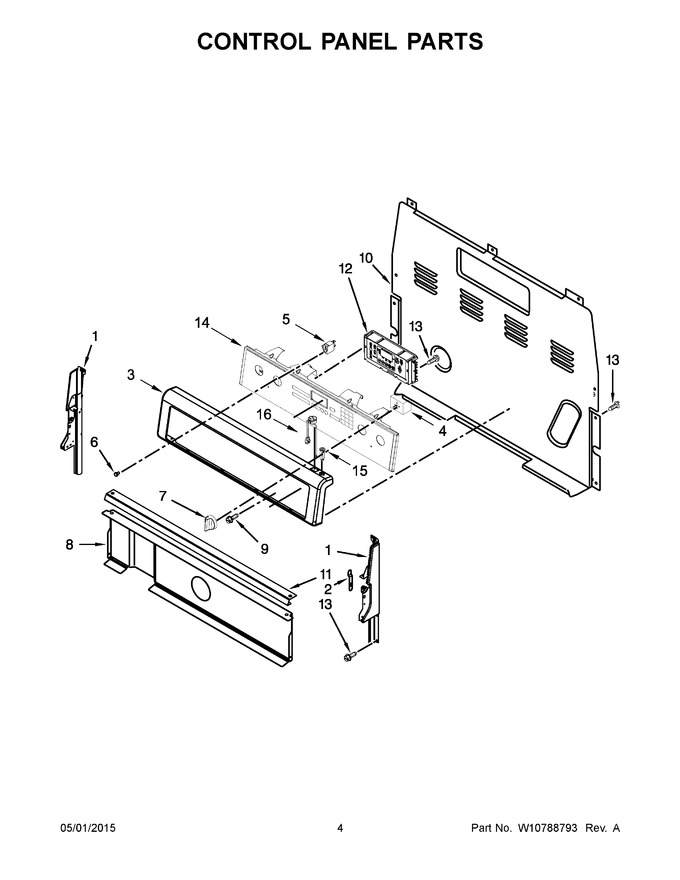

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white) (lh) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | WPW10318555 | Console, Panel (white) (Replaces: W10318555) |
|
$ 217.64 | |||||
| 4 | W10857622 | Switch, Infinite (dual) (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10854249 | Knob (stainless) (Replaces: W10676227) |
|
Immediately | $ 22.56 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WPW10340308 | Control (mrc) (Replaces: W10340308) |
|
$ 680.22 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W10730777 | Active Overlay Assembly (black) |
|
$ 418.27 | |||||
| 15 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 16 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 80.79 | ||||
| 14A | W10730778 | Active Overlay Assembly (white) |
|
$ 347.92 | |||||
| 15A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 16A | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 18.47 | ||||
| 1A | W11219370 | Endcap (white) (rh) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1B | W11219664 | Endcap (black) (lh) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1C | W11219665 | Endcap (black) (rh) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 3A | W10318554 | Console, Panel (black) |
|
$ 143.26 | |||||
| 3B | WPW10318553 | Console, Panel (stainless) (Replaces: W10318553) |
|
$ 299.19 | |||||
| 4A | W10917724 | Switch, Infinite (hyper) (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 4B | W10911303 | Switch, Infinite (single) (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 |
