Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10741197 Installation Instructions Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Vapor Barrier Assembly   (Replaces: W10320859) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

6 W11162001 Panel, Front (includes 4, 10, 11 & 16) (stainless)   (Replaces: W10665632) Special Order $ 400.83

7 WP8534008 Screw, Set   (Replaces: 8534008) Special Order $ 9.37

8 W10831329 Insulation, Four Layer   (Replaces: W10526105) In-Stock Immediately $ 43.30

9 W11193797 Handle Assembly (stainless)   (Replaces: W10709337) Special Order $ 132.90

10 WP8564951 Stud, Mounting   (Replaces: 8564951) In-Stock Immediately $ 19.33

11 W10319007 Light, Pipe Special Order $ 72.00

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 WPW10350242 Bracket, Control   (Replaces: W10350242) Special Order $ 88.32

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W11636815 Nameplate (stainless)   (Replaces: W10114211) Special Order $ 45.35

17 W11126003 Insulation, Front Panel   (Replaces: W10620222) In-Stock Immediately $ 65.25

18 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21

19 W10871196 Toe Panel (black)   (Replaces: W10586590) Special Order $ 174.04

20 W10194838 End Cap (left Hand) Special Order $ 181.74

21 M0207303 Screw Special Order $ 6.94

1A W10665625 Energy Guide Appelez-nous -
1B W10665639 Use & Care Guide Appelez-nous -
1C W10750900 Tech Sheet, English Appelez-nous -
1D W10754472 Tech Sheet, French Appelez-nous -
20A W10194837 End Cap (right Hand) Special Order $ 181.74

2A W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24


    View Diagram in Separate Window     Print Icon   Print Part List

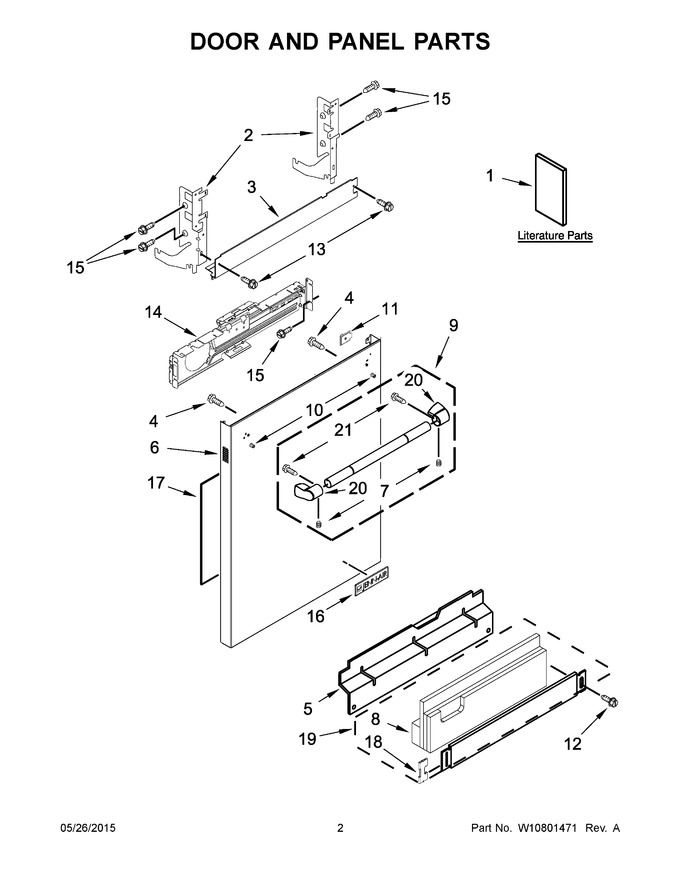

Diagram for JDB9800CWP2
