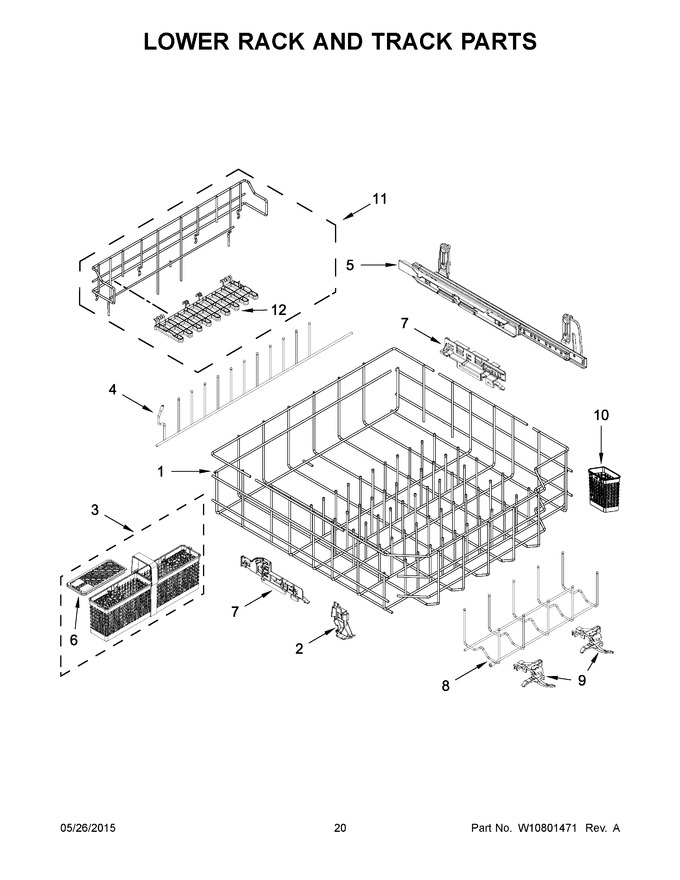

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11690157		Dishrack, Lower   (Replaces: W10665650)				$ 196.39
2	W11193827		Support, Front Ski (left Hand)   (Replaces: W10473813)				$ 24.35
3	W11767095		Basket Assembly,silverware   (Replaces: W10473836)			Immediately	$ 73.89
4	WPW10056351		Tinerow   (Replaces: W10056351)				$ 87.03
5	W10822165		Track Assembly (left Hand)   (Replaces: W10579131)			Immediately	$ 152.98
6	WPW10473835		Lid, Silverware Basket   (Replaces: W10473835)				$ 28.10
7	WPW10473807		Support, Rear Carriage (left Hand)   (Replaces: W10473807)			Immediately	$ 35.90
8	W10610895		Tine Row, Sliding				$ 69.23
9	W11213333		Retainer, Sliding Tine Row   (Replaces: W10713283)				$ 29.30
10	WPW10482109		Basket, Utensil   (Replaces: W10482109)				$ 93.86
11	W10610905		Cupshelf Assembly, Side				$ 110.27
12	W10630204		Cupshelf				$ 98.35
2A	W11197023		Support, Front Ski (right Hand)   (Replaces: W10473817)				$ 33.98
5A	W10822166		Track Assembly (right Hand)   (Replaces: W10579132)			Immediately	$ 167.81
7A	WPW10473809		Support, Rear Carriage (right Hand)   (Replaces: W10473809)			Immediately	$ 35.25
