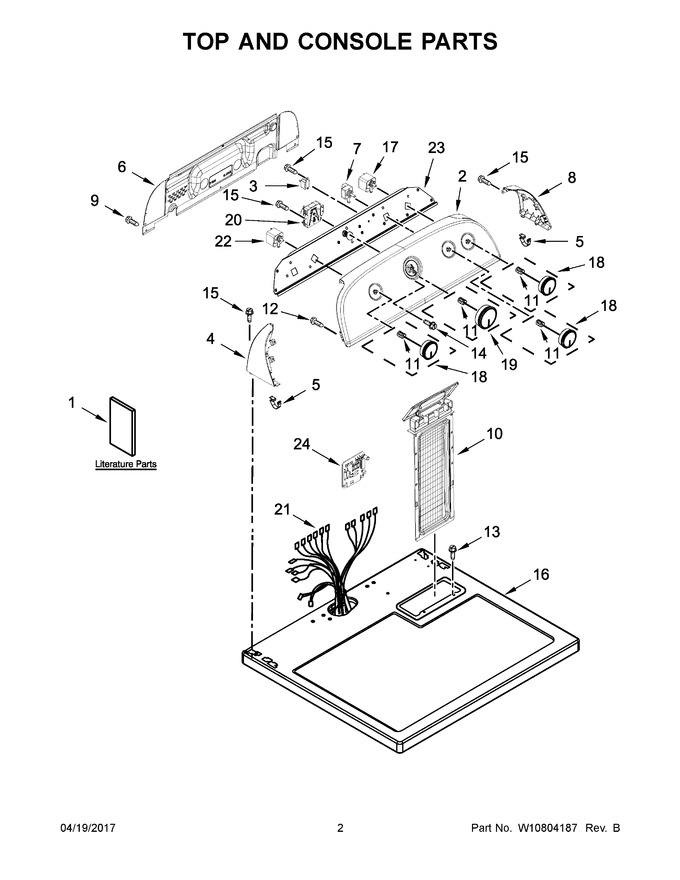

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - W10336852 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10646604 | Use And Care Guide |
|
- | |||||
| 2 | W10671235 | Console (white) |
|
$ 282.27 | |||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 64.69 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W10556829 | Panel, Rear (console) |
|
$ 285.82 | |||||
| 7 | WP3405156 | Switch, Rotary (2 Pos) (Replaces: 3405156) |
|
$ 152.79 | |||||
| 8 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 64.34 | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 15 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 18 | W10576636 | Assembly, Control Knob (white/metallic) |
|
- | |||||
| 19 | W11501455 | Assembly, Timer Knob (white/metallic) (Replaces: W10576634) |
|
$ 45.78 | |||||
| 20 | W10846428 | Assembly, Timer (Replaces: W10634750) |
|
Immediately | $ 205.83 | ||||
| 21 | W10635675 | Harness, Wiring |
|
- | |||||
| 22 | W11050715 | Switch, Temperature (Replaces: W10661453) |
|
Immediately | $ 11.59 | ||||
| 23 | W10556828 | Bracket, Control |
|
- | |||||
| 24 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 329.93 | ||||
| 1A | W10646605 | Use And Care Guide Spanish |
|
- | |||||
| 1B | W10848818 | Installation Instructions |
|
- | |||||
| 1C | W10634800 | Diagram, Wiring |
|
- |
