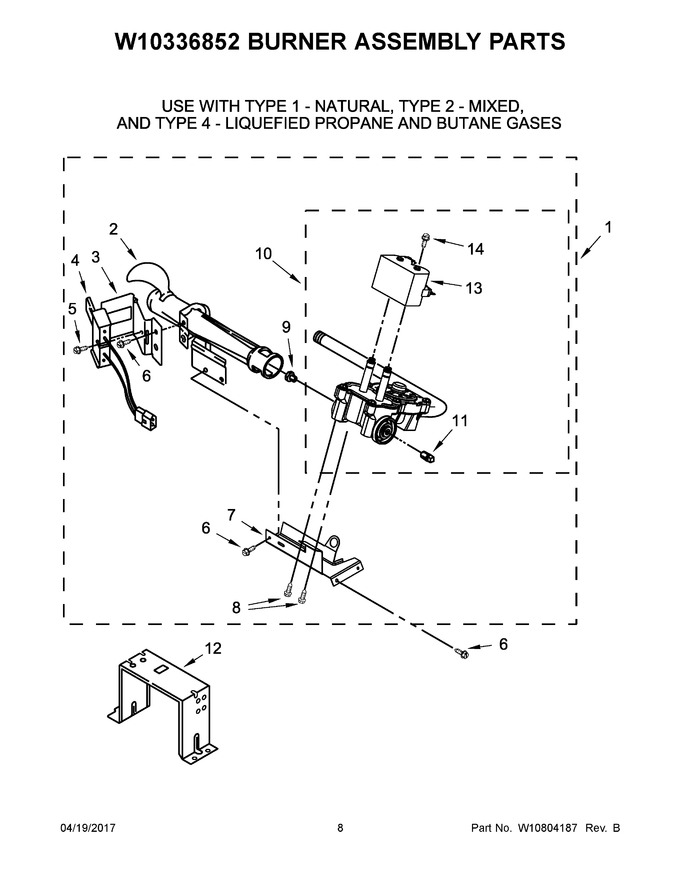

05 - W10336852 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823508 | Burner Assembly (60 Hz) (type 1 And 2) (Replaces: W10336852) |
|
$ 541.24 | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw (Replaces: W10366705) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 693986 | Base, Burner |
|
- | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 9 | WP234826 | Orifice, Burner (type 1 (natural)) (Replaces: 234826) |
|
$ 39.27 | |||||
| 10 | 279923 | Valve, Gas (Replaces: W10622159) |
|
Immediately | $ 286.03 | ||||
| 11 | W10295523 | Pipe Plug |
|
- | |||||
| 12 | 3389888 | Bracket, Support (Replaces: 3389889) |
|
- | |||||
| 13 | WPW10328463 | Coil (60 Hz) (Replaces: W10328463) |
|
Immediately | $ 79.02 | ||||
| 14 | 326049536 | Screw |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 49572A | Conversion Kit (type 1 And 2) To Type (4) L.p.g. |
|
Immediately | $ 36.19 |
