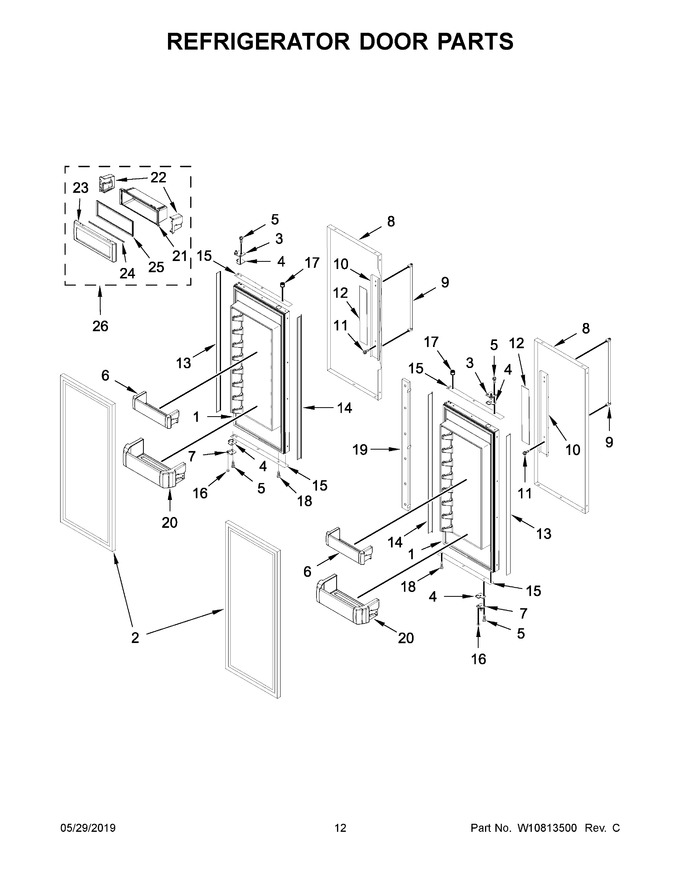

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10854246 | Door, Refrigerator (left Hand) (Replaces: W10796465) |
|
$ 1,422.19 | |||||
| 2 | W10600741 | Gasket, Door (grey) |
|
$ 228.32 | |||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 117.33 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | W10323598 | Bin, Door |
|
$ 94.31 | |||||
| 7 | W10273369 | Assembly, Bottom Hinge (left Hand) |
|
$ 37.09 | |||||
| 8 | W11797627 | Skin, Door (stainless) (Replaces: W10541583) |
|
- | |||||
| 9 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 195.04 | |||||
| 10 | W10127710 | Plate, Handle Door |
|
Immediately | $ 23.35 | ||||
| 11 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 12 | W10897450 | Filler, Foam Board |
|
- | |||||
| 13 | W10600734 | Spacer, Door Edge (hinge Side) |
|
$ 267.44 | |||||
| 14 | W10600736 | Spacer, Door Edge (handle Side) |
|
$ 273.29 | |||||
| 15 | W10600732 | Spacer, Door (top/bottom) |
|
$ 152.08 | |||||
| 16 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 17 | 2005433 | Spacer |
|
$ 21.00 | |||||
| 18 | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 | |||||
| 19 | W10732110 | Assembly, Mullion |
|
$ 262.17 | |||||
| 20 | W10323746 | Bin, Gallon Door |
|
$ 97.42 | |||||
| 21 | WPW10323035 | Bin, Utility Center (Replaces: W10323035) |
|
$ 76.44 | |||||
| 22 | WPW10323173 | Cap, End (left Hand) (Replaces: W10323173) |
|
$ 7.74 | |||||
| 23 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 68.23 | |||||
| 24 | 2222795 | Rail, Utility Lid |
|
$ 75.70 | |||||
| 25 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 192.96 | |||||
| 26 | W10323045 | Assembly, Utility Bin |
|
Immediately | $ 304.80 | ||||
| 1A | W10707770 | Door, Refrigerator (right Hand) |
|
- | |||||
| 22A | WPW10323172 | Cap, End (right Hand) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 7A | W10273367 | Assembly, Bottom Hinge (right Hand) |
|
$ 37.14 |
