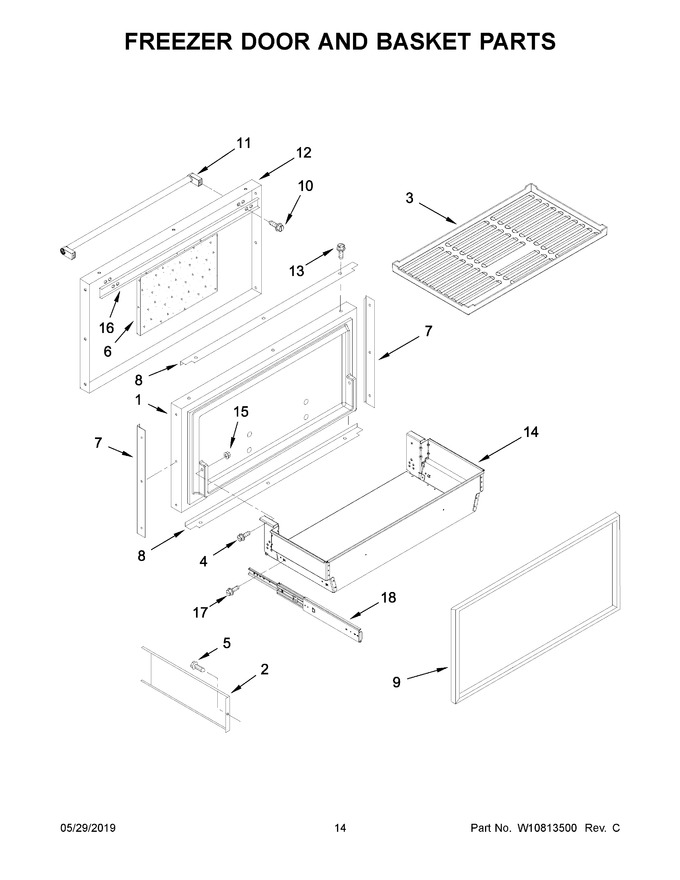

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10782357		Door, Freezer   (Replaces: W10707768)				$ 784.53
2	2317101		Divider, Basket		Appelez-nous	-
3	W10665413		Mat, Basket (grey)				$ 255.29
4	W10761334		Screw				$ 11.70
5	WP488234		Screw   (Replaces: W10135792)				$ 6.37
6	2309219		Filler, Foam				$ 249.86
7	W10600723		Spacer, Door Edge (side)		Appelez-nous	-
8	W10600721		Spacer, Door Edge (top And Bottom)		Appelez-nous	-
9	W10803138		Gasket, Door (grey)   (Replaces: W10600725)				$ 314.37
10	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
11	W10783283		Handle, Door (stainless)   (Replaces: W10541591)				$ 194.08
12	W11797625		Skin, Door (stainless)   (Replaces: W10541580)		Appelez-nous	-
13	WP8281250		Screw (stainless)   (Replaces: 8281250)				$ 10.28
14	W10770922		Assembly, Freezer Basket		Appelez-nous	-
15	W10771111		Nut			Immediately	$ 18.23
16	W10127710		Plate, Handle Door			Immediately	$ 23.35
17	W10109030		Screw				$ 13.82
18	W10744961		Slide, Basket (left Hand)				$ 238.04
18A	W10744962		Slide, Basket (right Hand)				$ 214.46

    View Diagram in Separate Window       Print Part List
