| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10814798 |
|
Assembly, Shelf (Replaces: W10760843) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10701859 |
|
Rack, Wine |
|
|
|
$ 21.53 |
|
|
| 3 |
W10814801 |
|
Assembly, Meat Pan Cover (Replaces: W10778076) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W10814800 |
|
Assembly, Crisper Cover (Replaces: W10778074) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
W10407623 |
|
Assembly, Crisper Pan |
|
Appelez-nous
|
- |
|
|
|
| 6 |
2302954 |
|
Slide, Meat Pan (left Hand) |
|
|
|
$ 343.49 |
|
|
| 7 |
WP2256247 |
|
Assembly, Crisper Pan Front (Replaces: 2256247) |
|
|
|
$ 133.22 |
|
|
| 8 |
2256223 |
|
Spacer, Crisper (left Hand) |
|
|
|
$ 84.49 |
|
|
| 9 |
2302956 |
|
Slide, Crisper (left Hand) |
|
|
|
$ 298.73 |
|
|
| 10 |
2256243 |
|
Spacer, Meat Pan (left Hand) |
|
|
|
$ 83.04 |
|
|
| 11 |
WP8533928 |
 |
Left Hand (screw (stainless)) (Replaces: 8533928) |
|
|
Immediately |
$ 8.26 |
|
|
| 12 |
W10407626 |
|
Assembly, Meat Pan |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP2256365 |
|
Assembly, Meat Pan Front (Replaces: 2256365) |
|
|
|
$ 173.51 |
|
|
| 14 |
W10593207 |
|
Assembly, Produce Preserver |
|
Appelez-nous
|
- |
|
|
|
| 10A |
2256244 |
|
Spacer, Meat Pan (right Hand) |
|
|
|
$ 103.70 |
|
|
| 11A |
W11830745 |
|
Right Hand (screw (stainless)) (Replaces: 8533929) |
|
Appelez-nous
|
- |
|
|
|
| 6A |
2302955 |
|
Slide, Meat Pan (right Hand) |
|
|
|
$ 343.18 |
|
|
| 8A |
2256222 |
|
Spacer, Crisper (right Hand) |
|
|
|
$ 89.24 |
|
|
| 9A |
2302957 |
|
Slide, Crisper (right Hand) |
|
|
|
$ 228.33 |
|
|

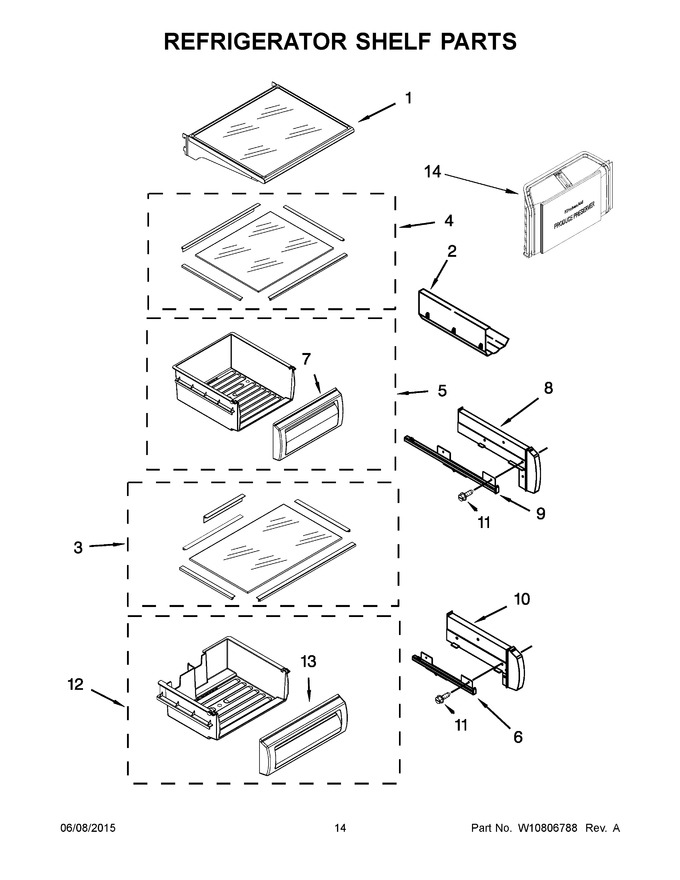

View Diagram in Separate Window
Print Part List
