| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10800791 |
|
Freezer Door (Replaces: W10769019) |
|
|
|
$ 1,270.42 |
|
|
| 2 |
W10127710 |
|
Plate, Handle Door |
|
|
Immediately |
$ 25.94 |
|
|
| 3 |
W11752085 |
 |
Assembly, Bottom Hinge (Replaces: 2302879) |
|
|
|
$ 63.07 |
|
|
| 4 |
W11474472 |
 |
Screw (Replaces: W10162602) |
|
|
Immediately |
$ 8.63 |
|
|
| 5 |
W11673500 |
 |
Assembly, Hinge (top) (Replaces: W10485980) |
|
|
Immediately |
$ 108.07 |
|
|
| 6 |
W11673500 |
|
Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
|
Immediately |
$ 108.07 |
|
|
| 7 |
W10800803 |
|
Gasket, Door (grey) (Replaces: W10761963) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W10783284 |
|
Door Handle (stainless) (Replaces: W10541592) |
|
|
|
$ 216.71 |
|
|
| 9 |
W10758113 |
|
Spacer, Handle Side Door |
|
Appelez-nous
|
- |
|
|
|
| 10 |
W10800796 |
|
Skin, Door (stainless) (Replaces: W10756216) |
|
|
|
$ 1,069.10 |
|
|
| 11 |
WP8281250 |
 |
Screw (stainless) (Replaces: 8281250) |
|
|
|
$ 11.42 |
|
|
| 12 |
W10758109 |
|
Spacer, Door Skin (top) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10759522 |
 |
Screw (stainless) (Replaces: 488568) |
|
|
|
$ 8.24 |
|
|
| 14 |
W10758111 |
|
Spacer, Door Skin Bottom |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W10756209 |
|
Spacer, Hinge Side Door |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP308544 |
 |
Screw (Replaces: 308544) |
|
|
Immediately |
$ 8.30 |
|
|
| 17 |
2325196 |
|
Filler, Door (top) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
W10323601 |
|
Bin, Door |
|
|
|
$ 92.19 |
|
|
| 17A |
2325197 |
|
Filler, Door (bottom) |
|
Appelez-nous
|
- |
|
|
|

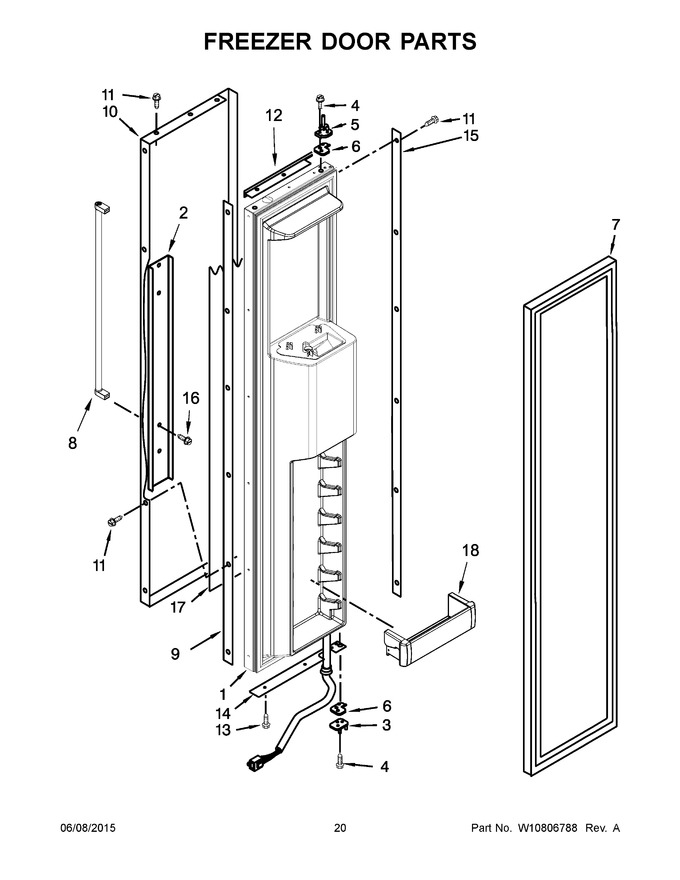

View Diagram in Separate Window
