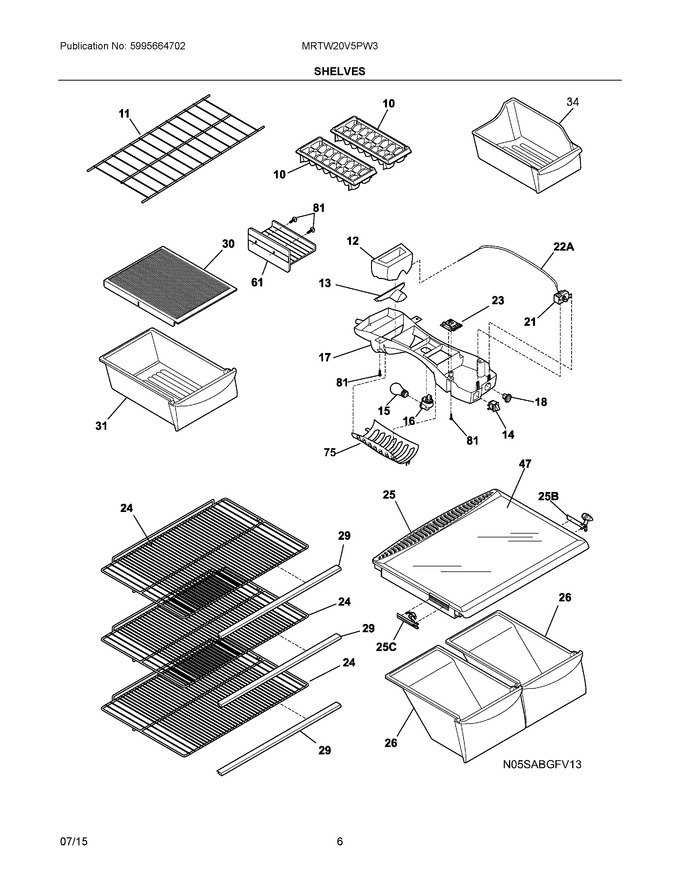

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray, Ice Cube, Plastic			Immediately	$ 6.74
11	240358008		Shelf, Freezer				$ 102.81
12	241542001		Diffuser, Air, Top			Immediately	$ 82.69
13	240362601		Diffuser, Air, Bottom			Immediately	$ 46.46
14	241554901		Switch-light/lamp				$ 78.75
15	218814402		Light Bulb				$ 61.51
16	241559801		Socket-light/lamp   (Replaces: 240433702)				$ 80.75
17	5304503170		Control Box				$ 28.82
18	240360801		Knob, Temp Control				$ 43.95
21	5304458064		Control-temperature		Appelez-nous	-
23	242011004		Control-defrost, Adaptive Timer, 220/240 V, Pc Board		Appelez-nous	-
24	240360908		Shelf, Sliding, Wire				$ 105.53
25	240364787		Cover-crisper Pan			Immediately	$ 134.42
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 164.83
30	240361802		Cover, Meat Pan Hanger, Drop Through				$ 34.70
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 158.35
34	3018945		Container, Ice		Appelez-nous	-
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 50.55
61	215781501		Shelf, Ice Tray Mount, Wire				$ 136.19
75	240412701		Shield, Light				$ 18.11
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White   (Replaces: 240468201)				$ 10.11
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
NIA	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 18.90
NIA	241705801		Spacer-shelf				$ 7.88
