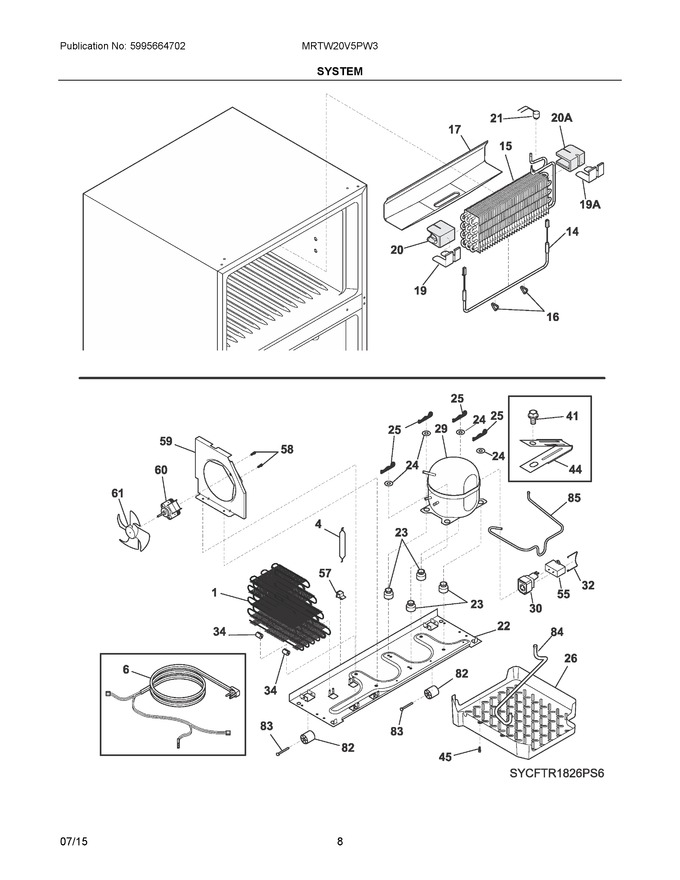

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785404		Condenser   (Replaces: 241873404)				$ 188.21
4	5303305677		Dryer-filter, W/process Tube   (Replaces: 242190201)			Immediately	$ 35.19
6	241723307		Cord-service, Britain		Appelez-nous	-
14	240356224		Defrost Heater, 220 V		Appelez-nous	-
15	5303918491		Evaporator Kit				$ 321.56
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 71.65
17	241801301		Trough-drain				$ 71.62
20	5304527429		Block, Evaporator, Rh   (Replaces: 242238401)				$ 12.47
21	5303918202		Thermostat-defrost, Kit			Immediately	$ 22.46
22	241665606		Base-compressor, W/rollers				$ 215.71
23	218513300		Grommet-compr Mtg, (4)				$ 47.25
24	241812301		Washer-compr Mtg				$ 14.32
25	242037701		Clip-compressor Mtg				$ 3.15
26	241920605		Pan-defrost				$ 59.73
29	240550927		Compressor		Appelez-nous	-
30	241707714		Starter-ptc				$ 66.15
32	241809001		Clamp, Elec Cont Mtg, Compressor		Appelez-nous	-
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 22.05
45	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.37
55	218909908		Capacitor, Run				$ 196.88
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw, Hex Washer Head, 8-32 X 0.375   (Replaces: 218897004)			Immediately	$ 14.96
59	5303918774		Shroud, Cond Fan Motor   (Replaces: 241935602)			Immediately	$ 207.00
60	242018402		Motor-condenser Fan, 220-240v		Appelez-nous	-
61	240524102		Fan Blade, Condenser Fan			Immediately	$ 43.81
74	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.88
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 15.75
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 57.30
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 39.27
84	240359601		Tube-drain, Lower				$ 88.20
85	241856901		Tube-connector, Suction				$ 86.79
20A	5304527430		Block, Evaporator, Lh   (Replaces: 242238301)				$ 12.75
29A	5303918413		Compressor, W/electricals		Appelez-nous	-
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 21.26
NIA	240346701		Tape-foam Seal, Shroud				$ 33.08
NIA	241735901		Bracket Assembly, Receptacle, Service Cord		Appelez-nous	-
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
NIB	240359403		Screw-fan Shroud, (2)				$ 4.21
NIB	241832601		Harness-wiring, Freezer		Appelez-nous	-
NIC	242020001		Harness, Wiring, Machine Compt		Appelez-nous	-
