Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10240509 Installation Instructions Appelez-nous -
2 W11026446 Top (white)   (Replaces: W10686433) Special Order $ 342.48

3 WPW10338625 Assembly, Lid And Bumper (white)   (Replaces: W10251302) In-Stock Immediately $ 369.60

4 WP9724509 Bumper   (Replaces: 9724509) In-Stock Immediately $ 7.93

5 WP9740848 Screw   (Replaces: 9740848) In-Stock Immediately $ 7.86

6 WP91770 Hinge, Lid   (Replaces: 91770) Special Order $ 27.45

7 WPW10119828 Screw   (Replaces: W10119872) In-Stock Immediately $ 7.19

8 W10837741 Strike, Lid Lock (white)   (Replaces: W10714899) In-Stock Immediately $ 29.66

9 WPW10273971 Screw   (Replaces: W10273971) In-Stock Immediately $ 7.19

10 WPW10192089 Dispenser, Bleach   (Replaces: W10192089) In-Stock Immediately $ 7.96

11 WPW10280024 U-bend, Drain Hose   (Replaces: W10280024) Special Order $ 79.53

12 WP21258 Bearing, Lid Hinge   (Replaces: 21258) In-Stock Immediately $ 7.63

13 WP90016 Clip, Harness   (Replaces: 90016) Special Order $ 11.32

14 W11307244 Latch, Lid Lock Assembly   (Replaces: W10682535) In-Stock Immediately $ 173.37

15 W11244231 Hose, Outer Drain Assembly   (Replaces: W10221546) In-Stock Immediately $ 32.07

16 W11486091 Panel, Rear   (Replaces: W10250884) In-Stock Immediately $ 312.11

17 W10596395 Cabinet (white)   (Replaces: W10478060) Special Order $ 458.85

18 W11695476 Brace, Cabinet Top - Front   (Replaces: W10215098) Special Order $ 75.99

19 W11712680 Brace, Cabinet Top - Rear   (Replaces: W10512626) Special Order $ 98.93

20 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.86

21 WP356138 Clamp, Hose   (Replaces: 356138) In-Stock Immediately $ 8.52

22 WPW10687506 Foot, Leveling   (Replaces: W10397994) In-Stock Immediately $ 24.83

23 WPW10339879 Tie, Cable   (Replaces: W10339879) Special Order $ 7.90

24 WP489128 Screw   (Replaces: W10142728) Special Order $ 10.88

25 W10676061 Cover, Harness Special Order $ 35.02

26 W10846509 Screw   (Replaces: 3400076) In-Stock Immediately $ 7.76

1A W10740628 Owners Manual Appelez-nous -
1B W10740624 Tech Sheet Appelez-nous -
1C W10063026 Energy Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

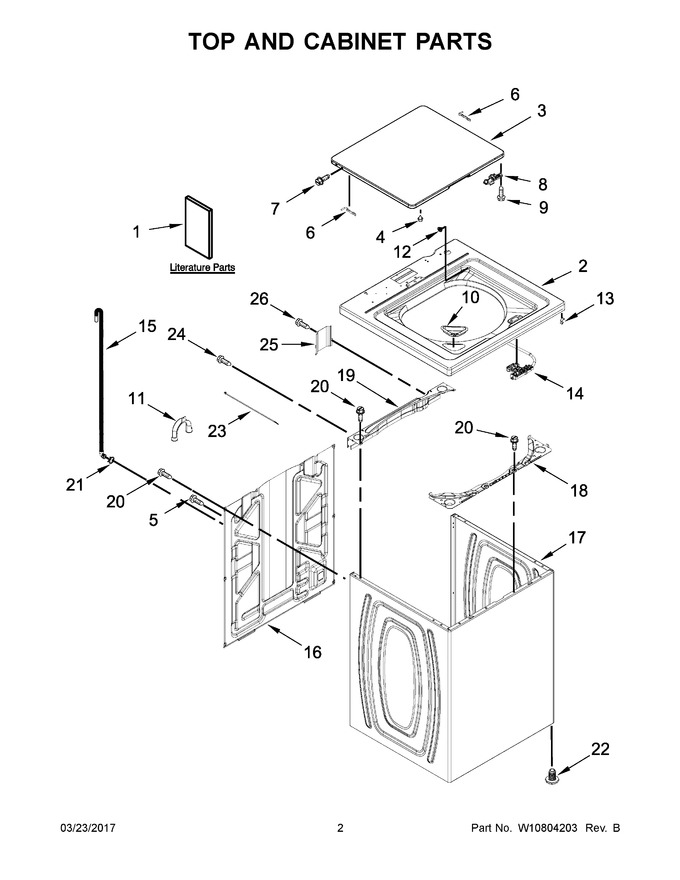

Diagram for WTW4815EW1
