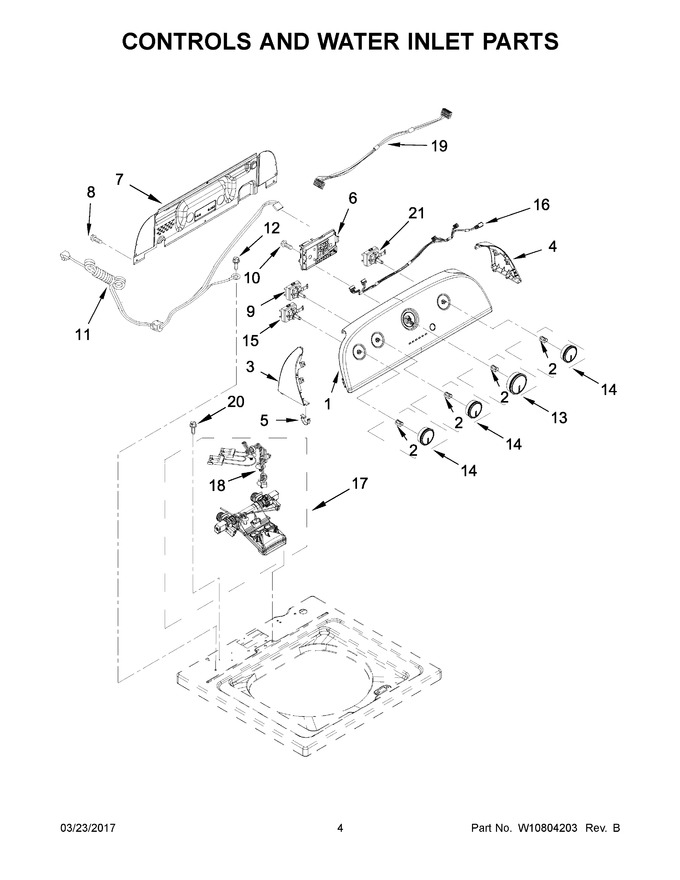

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11089974 | Console, Panel (Replaces: W10774116) |
|
$ 583.16 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 64.69 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 64.34 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11124765 | Control Unit Assembly, Machine And Motor (Replaces: W10779753) |
|
$ 539.61 | |||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 343.17 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 117.42 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 130.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10770866) |
|
$ 45.78 | |||||
| 14 | W11176265 | Assembly, Control Knob (white/metallic) (Replaces: W10770858) |
|
$ 52.40 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 182.10 | ||||
| 16 | W10694682 | Harness, Upper |
|
- | |||||
| 17 | W11210459 | Inlet Assembly, Water (Replaces: W10869799) |
|
Immediately | $ 102.67 | ||||
| 18 | W10868094 | Harness, Valve |
|
$ 186.11 | |||||
| 19 | W10786100 | Harness, Jumper |
|
$ 189.98 | |||||
| 20 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 21 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 190.47 |
