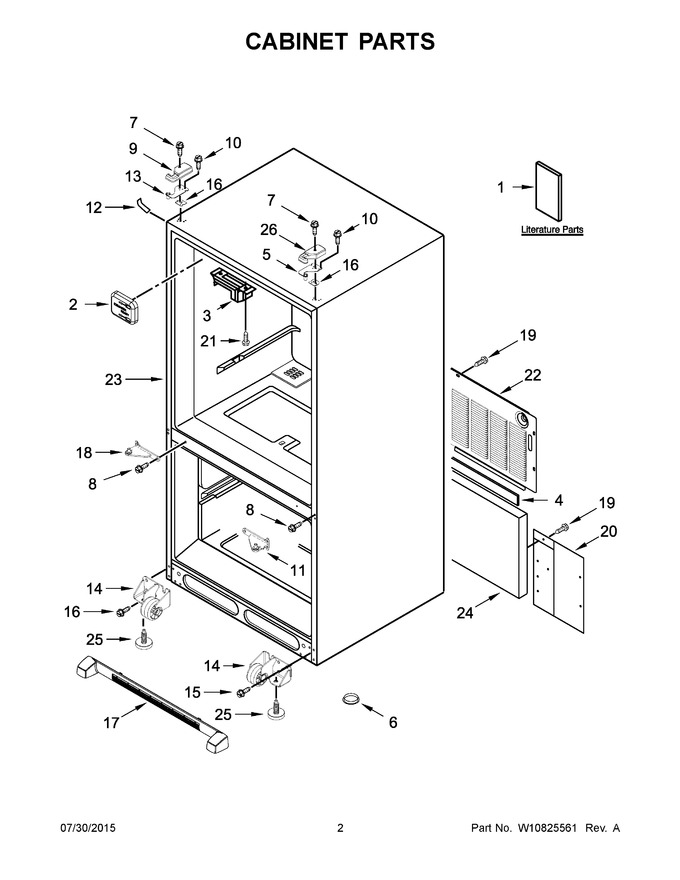

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10747215 | Tech Sheet |
|
- | |||||
| 2 | WP67001098 | Cover, Fill Tube (Replaces: 12477501) |
|
$ 8.43 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205EDN) |
|
Immediately | $ 31.90 | ||||
| 6 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 7 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 8 | W11573362 | Screw (Replaces: 12992201) |
|
$ 14.72 | |||||
| 9 | WPW10337648 | Hinge, Cover (grey) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 10 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 11 | W10917988 | Hinge, Center (left) (grey) (Replaces: 13000002AP) |
|
Immediately | $ 95.63 | ||||
| 12 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 13 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204EDN) |
|
$ 31.92 | |||||
| 14 | W11820444 | Roller Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 15 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 16 | 12999501 | Shim, Hinge (left Hand) |
|
$ 99.53 | |||||
| 17 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 18 | W10917988 | Hinge, Center (right) (grey) (Replaces: 13000001AP) |
|
Immediately | $ 95.63 | ||||
| 19 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 20 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 21 | WP7101P126-60 | Screw (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 22 | W10523252 | Cover, Unit |
|
- | |||||
| 23 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 24 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 25 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 26 | WPW10191117 | Cover, Top Hinge (right) (grey) (Replaces: 12962302APN) |
|
$ 23.05 | |||||
| 14A | W11820445 | Roller Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 16A | 12999502 | Shim, Hinge (right Hand) |
|
$ 100.60 | |||||
| 1A | W10747191 | Guide, Use & Care |
|
- |
