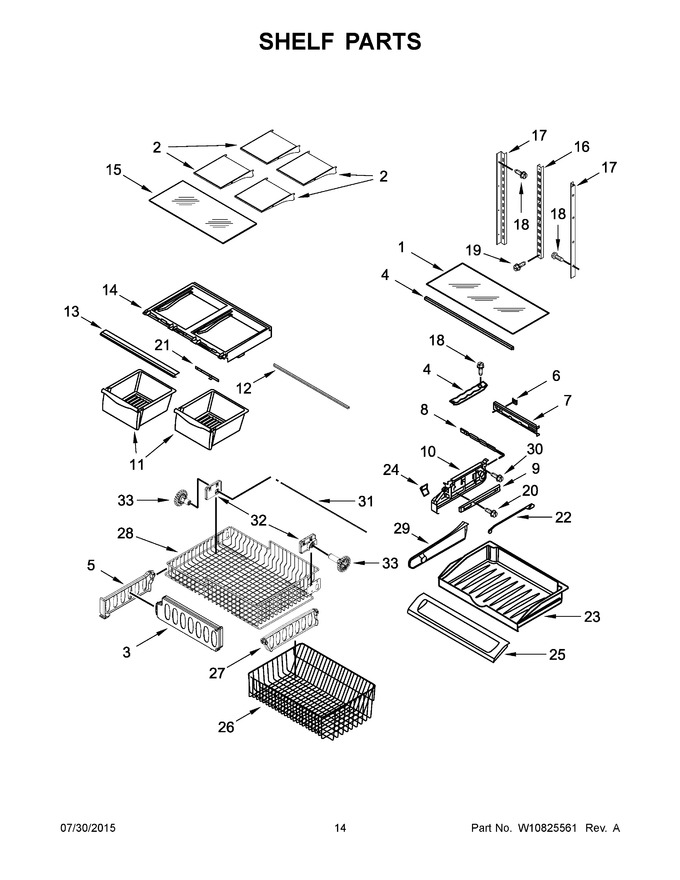

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125512 | Glass, Pantry (Replaces: 12204829) |
|
Immediately | $ 253.06 | ||||
| 2 | W11026424 | Assembly, Shelf (Replaces: W10743555) |
|
Immediately | $ 242.34 | ||||
| 3 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 4 | WP67001719 | Track, Deli Drawer (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 5 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 29.19 | ||||
| 6 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 7 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 8 | WP67003793 | Slide, Temperature Control (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 9 | WPW10235370 | Glide, Pantry (Replaces: W10235370) |
|
Immediately | $ 199.80 | ||||
| 10 | WP12656105 | Endcap, Pantry (left Hand) (Replaces: 12656105) |
|
Immediately | $ 58.41 | ||||
| 11 | WP67002659 | Pan, Crisper (Replaces: 12531105SP) |
|
Immediately | $ 147.67 | ||||
| 12 | WP12227304WD | Brace, Crisper Cover (Replaces: 12227304WD) |
|
$ 108.69 | |||||
| 13 | WPW10231485 | Trim, Crisper (Replaces: W10231485N) |
|
$ 110.64 | |||||
| 14 | WP67006185 | Frame, Crisper (Replaces: 12531202SP) |
|
$ 216.05 | |||||
| 15 | WP67006655 | Glass, Crisper (Replaces: 12204821) |
|
Immediately | $ 228.45 | ||||
| 16 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 17 | WPW10569182 | Ladder, Side (Replaces: W10569182) |
|
$ 27.59 | |||||
| 18 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 19 | W10215666 | Screw |
|
$ 9.53 | |||||
| 20 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 21 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 22 | 67003794 | Bar, Temperature Control (Replaces: 12655303) |
|
$ 13.82 | |||||
| 23 | W11490183 | Drawer, Pantry (Replaces: 12655702) |
|
$ 144.29 | |||||
| 24 | W11498983 | Knob, Temperature Control (Replaces: 12655204) |
|
$ 30.64 | |||||
| 25 | W10827015 | Lid, Pantry (Replaces: 12656813) |
|
Immediately | $ 175.81 | ||||
| 26 | W10503185 | Basket, Lower |
|
$ 156.98 | |||||
| 27 | W10150061 | Divider, Basket (lower) |
|
$ 89.33 | |||||
| 28 | W10348245 | Basket, Freezer (upper) |
|
$ 305.90 | |||||
| 29 | WP67002321 | Divider, Pantry (Replaces: 12709301) |
|
$ 33.79 | |||||
| 30 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 31 | W11173556 | Shaft, Rack (Replaces: 12812904WD) |
|
$ 32.38 | |||||
| 32 | W10348259 | Mount-gear (left Hand) |
|
$ 89.87 | |||||
| 33 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 32.42 | ||||
| 10A | WP12656018 | Endcap, Pantry (right Hand) (Replaces: 12656018) |
|
Immediately | $ 58.87 | ||||
| 32A | W10348260 | Mount-gear (right Hand) |
|
$ 89.90 | |||||
| 33A | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 32.76 |
