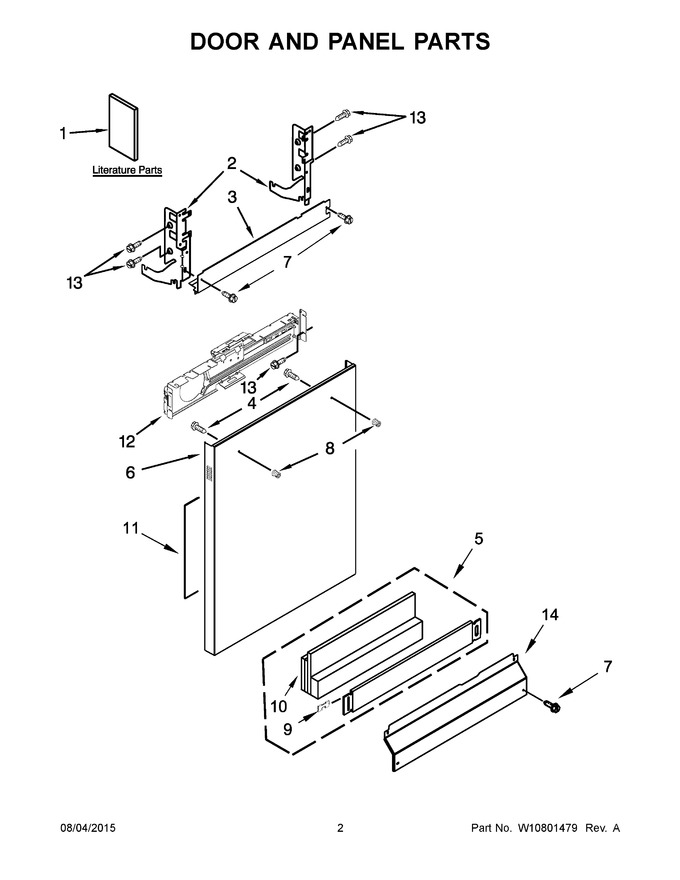

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10815720		Use & Care Guide, Portuguese		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10726645)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	WPW10586591		Toe Panel (white)   (Replaces: W10586591)				$ 309.39
6	W10779162		Panel Front (includes Items 4 & 8) (white)		Appelez-nous	-
7	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
8	W10773127		Stud, Mounting		Appelez-nous	-
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
10	W10831329		Insulation, Four Layer   (Replaces: W10526105)			Immediately	$ 43.30
11	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
12	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
13	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
14	WPW10441007		Access Panel (white)   (Replaces: W10195778)				$ 170.94
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
7A	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
