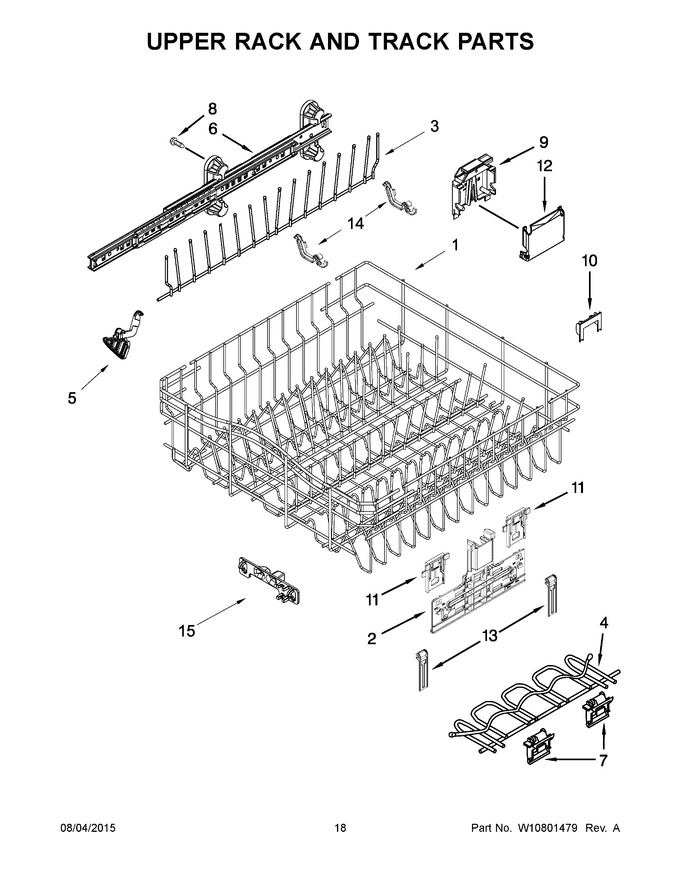

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661174 | Dishrack, Upper (Replaces: W10194861) |
|
$ 197.59 | |||||
| 2 | WPW10546503 | Adjuster Assembly (Replaces: W10546503) |
|
Immediately | $ 43.81 | ||||
| 3 | W10194862 | Tine, Fold Down |
|
$ 87.03 | |||||
| 4 | W10669975 | Cupshelf |
|
$ 51.41 | |||||
| 5 | W10919676 | Clip, Dispenser Guard (Replaces: W10752617) |
|
Immediately | $ 10.00 | ||||
| 6 | W11259786 | Track, Assembly (right Hand) (Replaces: W10781305) |
|
Immediately | $ 84.94 | ||||
| 7 | 8562026 | Clip, Cupshelf |
|
$ 101.18 | |||||
| 8 | WPW10309090 | Screw (Replaces: W10309090) |
|
Immediately | $ 76.86 | ||||
| 9 | WPW10588165 | Housing Adjuster (right Hand) (Replaces: W10588165) |
|
Immediately | $ 54.81 | ||||
| 10 | WPW10250160 | Clip, Adjuster (Replaces: W10250160) |
|
Immediately | $ 40.55 | ||||
| 11 | WPW10195840 | Positioner, Adjuster (Replaces: W10195840) |
|
Immediately | $ 51.32 | ||||
| 12 | WPW10250162 | Cover, Adjuster (Replaces: W10250162) |
|
Immediately | $ 7.61 | ||||
| 13 | WPW10195839 | Strap, Tether Adjuster (Replaces: W10195839) |
|
Immediately | $ 30.81 | ||||
| 14 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 5.40 | ||||
| 15 | WP8539102 | Positioner, Dual Dishrack (Replaces: 8539102) |
|
$ 103.88 | |||||
| 6A | W11259785 | Track, Assembly (leftt Hand) (Replaces: W10781301) |
|
Immediately | $ 78.80 | ||||
| 9A | WPW10588164 | Housing Adjuster (left Hand) (Replaces: W10588164) |
|
Immediately | $ 16.84 |
