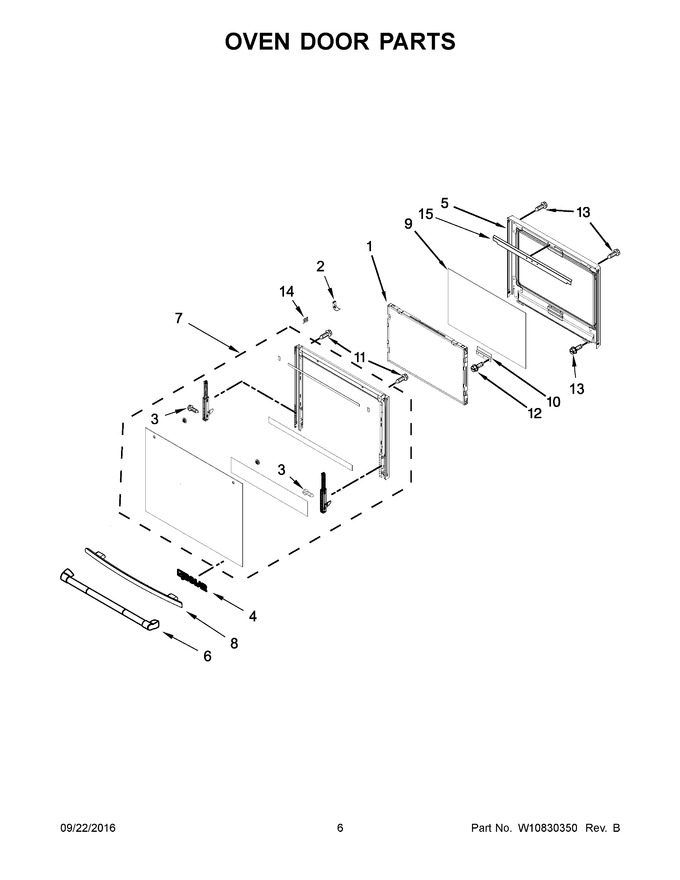

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347596 | Assembly, Window Pack (Replaces: W10347596) |
|
Immediately | $ 307.67 | ||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 157.87 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.75 | ||||
| 4 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 81.86 | |||||
| 5 | WPW10709147 | Assembly, Liner (Replaces: W10709147) |
|
$ 349.23 | |||||
| 6 | W11234410 | Assembly, Handle (stainless (pro-style Models)) (Replaces: W10483386) |
|
$ 226.17 | |||||
| 7 | W11110939 | Assembly, Door (black) (Replaces: W10649196) |
|
$ 478.65 | |||||
| 8 | W10550998 | Assembly, Handle (black) |
|
- | |||||
| 9 | WPW10618107 | Glass, Inner (Replaces: W10618107) |
|
$ 235.91 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 156.06 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.88 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 17.71 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 167.75 | ||||
| 15 | W10669415 | Shield, Door Liner |
|
$ 66.24 | |||||
| 4A | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 81.86 | |||||
| 4B | WPW10159578 | Badge (stainless (pro-style Models)) (Replaces: W10159578) |
|
Immediately | $ 84.32 | ||||
| 7A | W11110938 | Assembly, Door (stainless) (Replaces: W10649195) |
|
Immediately | $ 485.57 | ||||
| 8A | W11195001 | Assembly, Handle (stainless) (Replaces: W10551013) |
|
$ 218.53 |
