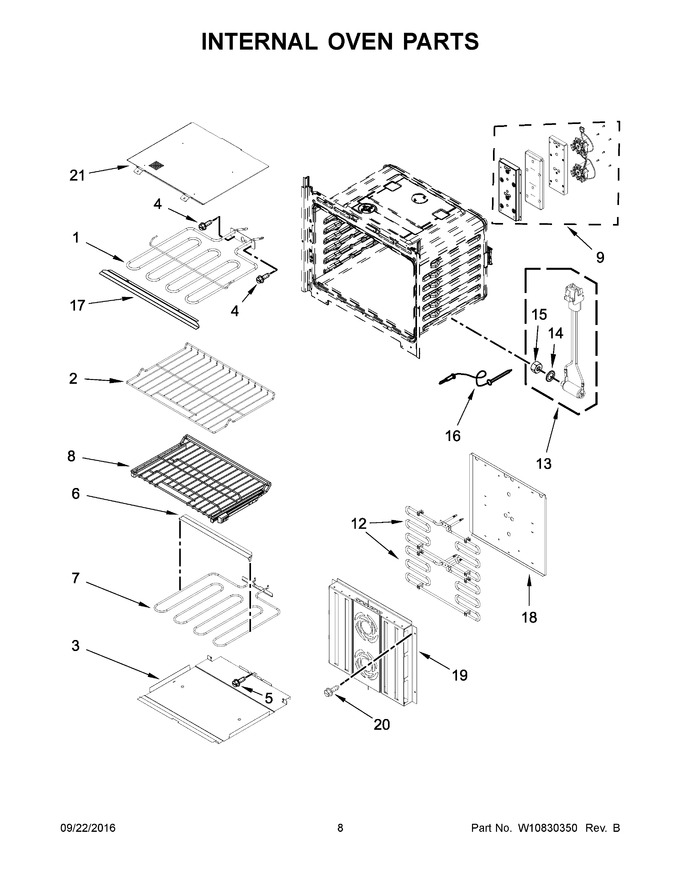

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 182.96 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 102.53 | ||||
| 8 | W11256305 | Rack, Sliding (Replaces: W10840297) |
|
$ 365.59 | |||||
| 9 | W10853996 | Assembly, Convection Motor |
|
$ 379.94 | |||||
| 10 | W11251691 | Blade, Convection Fan (Replaces: W10213746) |
|
$ 330.03 | |||||
| 11 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 12 | W11098805 | Element, Convection (Replaces: W10854021) |
|
$ 257.02 | |||||
| 13 | W11220388 | Jack, Meat Probe (Replaces: W10696226) |
|
Immediately | $ 69.63 | ||||
| 14 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 15 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 16 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 17 | W10588737 | Shield, Broil Front |
|
$ 105.40 | |||||
| 18 | W10853277 | Shield, Convection |
|
$ 94.21 | |||||
| 19 | W11313747 | Assembly, Baffle (Replaces: W10559988) |
|
$ 238.76 | |||||
| 20 | W10739592 | Screw |
|
- | |||||
| 21 | W11290999 | Shield, Broil Element (Replaces: W10318164) |
|
$ 210.95 |
