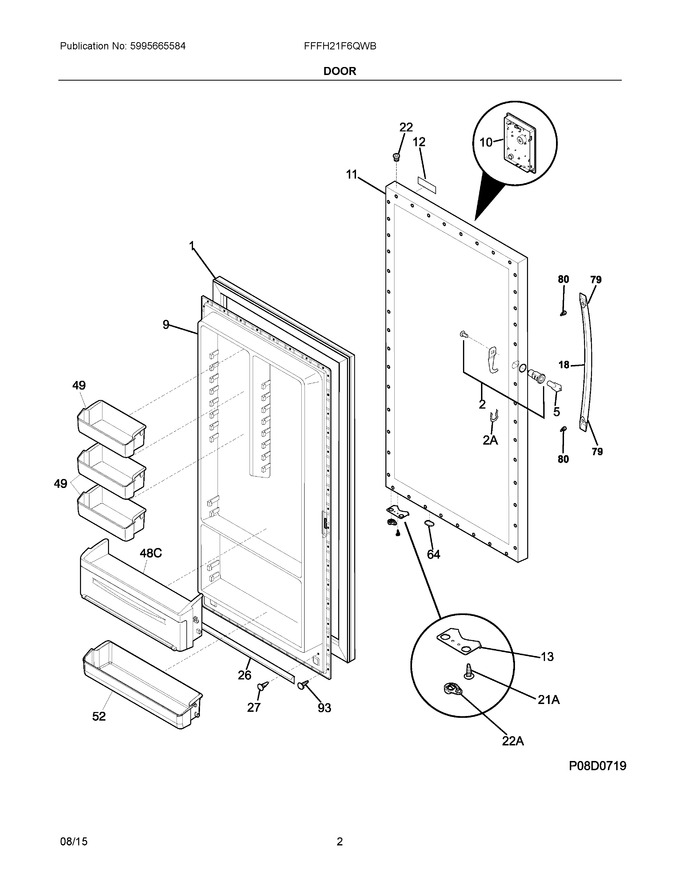

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304506131		Gasket-door, White   (Replaces: 216522378)			Immediately	$ 266.47
2	297318600		Lock Assy				$ 40.97
5	297147700		Key, Lock			Immediately	$ 8.41
9	297382800		Panel, Inner				$ 234.20
10	808772224		Control, Electronic   (Replaces: 808772215)			Immediately	$ 246.89
11	297317310		Panel-outer Door, White				$ 555.19
12	242016301		Nameplate, Frigidaire   (Replaces: 297434601)				$ 4.73
13	297416200		Door Stop				$ 17.67
18	5304511509		Handle-door, White, W/set Screws   (Replaces: 242059302)				$ 151.39
22	216970802		Bearing, Hinge, Natural, Top			Immediately	$ 12.05
26	297387100		Gasket, Secondary				$ 21.69
27	5303212828		Clip, Panel Mtg				$ 18.48
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
49	297187201		Bin-door, 2l, Clear				$ 77.75
52	297225603		Bin-door, Clear				$ 126.21
64	297014702		Plug-button, Door Base				$ 10.45
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 21.74
93	216858001		Screw, Ph Truss Head, 8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 12.05
21A	297197500		Screw, Door Stop Mtg, Fh38-16x.750, P Twin				$ 16.07
22A	297415900		Ramp, Door Closer			Immediately	$ 27.49
2A	297213300		Clip, Spring				$ 10.17
48C	297350101		Bin-door, Soft Freeze   (Replaces: 297350100)			Immediately	$ 163.41
79A	297295900		Screw-set			Immediately	$ 21.69
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.94
NI	297407700		Handle Installation Kit				$ 11.25
NI	240537301		Nut-anchor, Door Hdl Screw				$ 12.60
NI	5304494359		Harness, Door				$ 44.52
NIA	5304406520		Clip, Panel Mtg Kit, (40)				$ 139.81

    View Diagram in Separate Window       Print Part List
