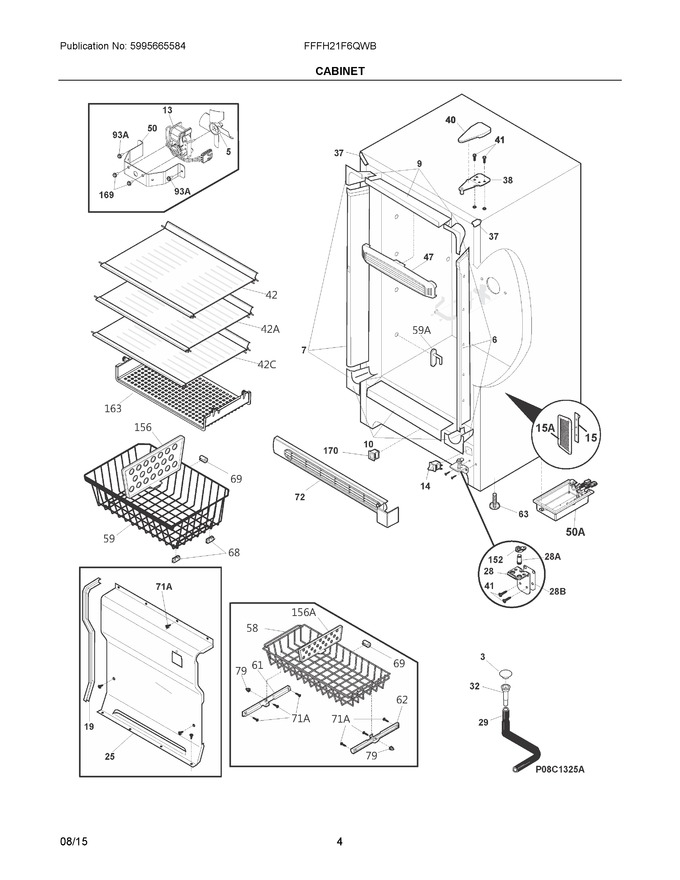

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
5	297437300		Fan Blade				$ 7.46
6	297435605		Breaker				$ 57.30
7	297435604		Breaker, U21, W/lock				$ 65.00
9	297403901		Breaker, Top				$ 61.58
10	297403902		Breaker, Bottom				$ 67.58
13	297309000		Fan Motor Evap 115v			Immediately	$ 72.84
14	216822900		Switch, Light/lamp, Ramp			Immediately	$ 77.96
15	242196204		Light Board, 3 Led Cluster			Immediately	$ 73.35
19	216204902		Gasket-evap Cover			Immediately	$ 39.71
25	297099251		Cover-evaporator				$ 109.93
26	297415900		Ramp, Door Closer			Immediately	$ 27.49
28	297416301		Hinge, Reversible, Bottom Rh				$ 16.87
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 297382000)				$ 15.27
35	5304497977		Control Board, Assembly, W/harness   (Replaces: 5304496956)			Immediately	$ 319.36
37	297273904		Trim-cabinet Corner, White, (2)				$ 8.43
38	297283803		Hinge-upper   (Replaces: 297283800)			Immediately	$ 21.69
40	297164400		Cover-hinge, White				$ 14.06
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
42	5304497873		Shelf, Assy, Glass, Upper				$ 206.33
47	297192903		Baffle, Air   (Replaces: 297192900)			Immediately	$ 28.12
50	216394050		Bracket, Fan Motor Mount				$ 25.28
58	808618202		Basket, Lower   (Replaces: 5304494076)				$ 149.36
59	5304493991		Basket				$ 94.97
61	5304493996		Support, Hanging Basket, Rh		Appelez-nous	-
62	5304493997		Support, Hanging Basket, Lh		Appelez-nous	-
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297387701		Grille/kickplate				$ 40.06
79	301036		Nut-insert   (Replaces: 3017666)				$ 17.67
93	297410600		Screw, 8-18 X .500			Immediately	$ 3.94
152	5304511026		Closer, Bearing Hinge   (Replaces: 297416000)			Immediately	$ 11.25
156	5304494537		Divider, Basket		Appelez-nous	-
163	808617701		Shelf, Pizza, Hanging		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
170	297280400		Valve, Breather				$ 11.25
156A	5304494585		Divider, Basket, Lower				$ 24.10
15A	242202701		Lens, 3 Led Cluster				$ 33.86
28A	297438300		Pin, Bottom Hinge				$ 8.03
42A	A02289402		Shelf, Assy, Glass, Lower   (Replaces: 5304497876)				$ 49.80
42C	5304497953		Shelf, Assy				$ 196.09
50A	5304497977		Board-main Power, Board & Housing			Immediately	$ 319.36
58A	808408301		Clip, Basket Handle, Blue				$ 21.27
59A	216486500		Stop-basket, (2)				$ 20.58
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
93B	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
NI	5304496697		Cover, Access, Machine Compt.		Appelez-nous	-
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 16.01
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	5304496283		Grommet, Shelf Mtg				$ 10.24
NI	5304495543		Energy Guide		Appelez-nous	-
NI	5304497974		Quick Start Guide		Appelez-nous	-
NI	125963-48		Insulation, 24", Drain Tube   (Replaces: 297001704)			Immediately	$ 65.73
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIAA	5304494016		Clip, Basket Handle, Green				$ 11.60
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51
NIB	5304494017		Clip, Basket Handle, Yellow		Appelez-nous	-
NIC	808408304		Clip, Basket Handle, Red				$ 23.63
